Description

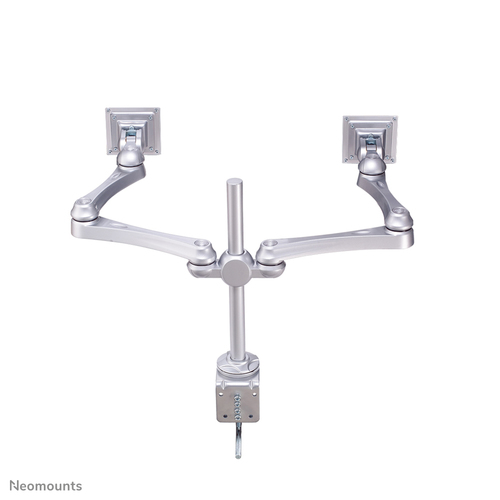

Neomounts FPMA-D930D Monitor arm 10-30", Clamp, 7 kg, 25.4 cm (10"), 76.2 cm (30"), 100 x 100 mm, Silver

The Neomounts desk mount, model FPMA-D930D is a tilt-, swivel and rotatable desk mount for 2 flat screens up to 30". This mount is a great choice for space saving placement on desks using a desk clamp.

Neomounts versatile tilt (180°), rotate (270°) and swivel (270°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 50 centimetres. Depth adjustable from 19 to 62 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

Neomounts FPMA-D930D has two pivot points and is suitable for screens up to 30" (76 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.

All installation material is included with the product.

Specifications

BrandNEOMOUNTS
Manufacturer part no.FPMA-D930D
Our part no.Q610192
EAN8717371440718
CategoryMonitors & Displays › Monitor Mounts & Stands
Weight8.3 kg
Mounting
Maximum weight capacity7 kg
Minimum screen size25.4 cm (10")
Number of displays supported2
Maximum weight capacity (per display)7 kg
Maximum screen size76.2 cm (30")
MountingClamp
Mounting typeDesk
Minimum VESA mount75 x 75 mm
Maximum VESA mount100 x 100 mm
Panel mounting interface100 x 100,75 x 75 mm
Desk thickness (max)9 cm
Distance to the wall (min)19 cm

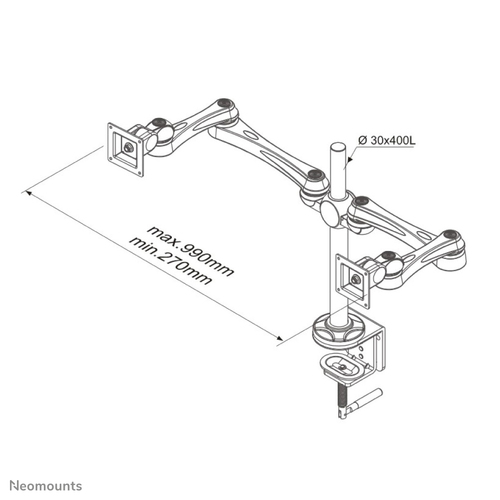

Distance to the wall (max)62 cm
Ergonomics
Height adjustmentYes
Height adjustment typeManual
Height adjustment range0 - 500 mm
Depth adjustment range190 - 620 mm
Tilt adjustmentYes
Tilt angle range0 - 180°
SwivellingYes
Swivel angle270°
Swivel angle range0 - 270°
RotatingYes
Angle of rotation270°
Design
Housing materialAluminium
Product colourSilver
Weight & dimensions
Height500 mm
Weight7.72 kg
Length621.5 mm
Packaging data
Package width230 mm
Package depth84 mm
Package height77 mm
Package weight23 kg
Logistics data
Master (outer) case width680 mm
Master (outer) case length240 mm
Master (outer) case height220 mm
Master (outer) case gross weight23 kg
Products per master (outer) case1 pc(s)
Country of originTaiwan
Master (outer) case net weight23 kg
Harmonized System (HS) code7616991099
Products per pallet (EU)35 pc(s)
