Description

Neomounts FPMA-D940D Monitor arm 10-24" - gas spring, Clamp, 7 kg, 25.4 cm (10"), 61 cm (24"), 100 x 100 mm, Silver

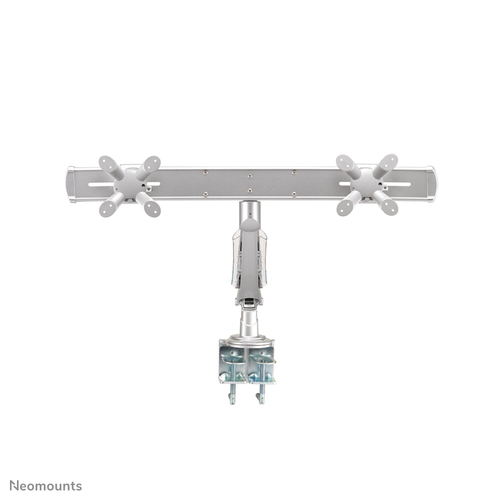

The Neomounts desk mount, model FPMA-D940D is a tilt-, swivel and rotatable desk mount for 2 flat screens up to 24". This mount is a great choice for space saving placement on desks using a desk clamp.

Neomounts versatile tilt (60°), rotate (180°) and swivel (360°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily height adjustable from 0 to 42 centimetres using a gas spring. Depth adjustable from 0 to 48 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

Neomounts FPMA-D940D has three pivot points and is suitable for screens up to 24" (61 cm). The weight capacity of this product is 4 to 7,5 kg per screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.

All installation material is included with the product.

Specifications

BrandNEOMOUNTS
Manufacturer part no.FPMA-D940D
Our part no.Q610354
EAN8717371442156
CategoryMonitors & Displays › Monitor Mounts & Stands
Weight7.9 kg
Mounting
Maximum weight capacity7 kg
Minimum screen size25.4 cm (10")
Number of displays supported2
Maximum weight capacity (per display)7 kg
Maximum screen size61 cm (24")
MountingClamp
Mounting typeDesk
Minimum VESA mount75 x 75 mm
Maximum VESA mount100 x 100 mm
Panel mounting interface100 x 100,75 x 75 mm
Desk thickness (max)7 cm
Ergonomics
Height adjustmentYes
Height adjustment typeGas spring
Height adjustment range0 - 420 mm
Depth adjustment range0 - 480 mm
Tilt adjustmentYes
Tilt angle range0 - 60°
SwivellingYes
Swivel angle360°
Swivel angle range0 - 360°
RotatingYes
Angle of rotation180°
Design
Housing materialAluminium
Product colourSilver
Weight & dimensions
Depth480 mm
Height420 mm
Packaging data
Package width820 mm
Package depth140 mm
Package height280 mm
Package weight8 kg
Other features
Minimum weight4 kg
Logistics data
Master (outer) case width820 mm
Master (outer) case length140 mm
Master (outer) case height280 mm
Master (outer) case gross weight8 kg
Products per master (outer) case1 pc(s)
Country of originTaiwan
Master (outer) case net weight8 kg
Harmonized System (HS) code7616991099
Products per pallet (EU)20 pc(s)
