Description

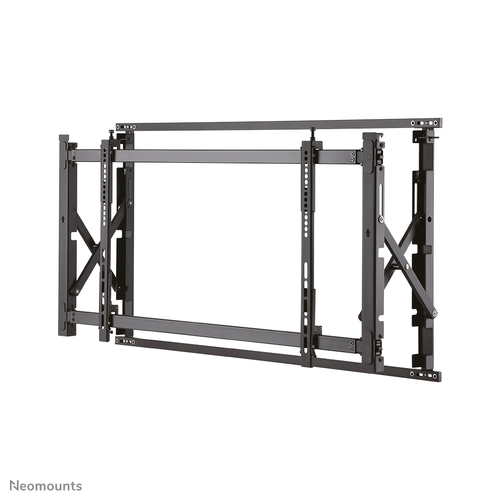

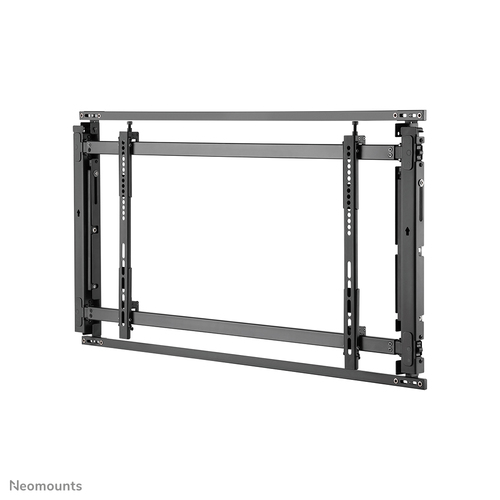

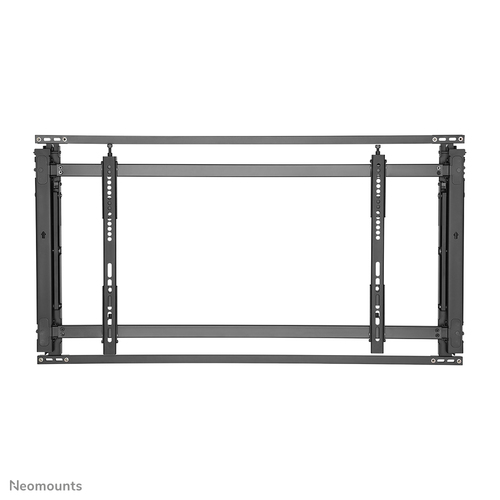

Neomounts LED-VW1750BLACK Videowall wall mount 32-55" - pull-out - max 35 kg, 35 kg, 81.3 cm (32"), 139.7 cm (55"), 200 x 200 mm, 600 x 400 mm, 0 - 540 mm
The Neomounts wall mount, model LED-VW1750BLACK is a fixed wall mount for flat screens up to 55" (140 cm). This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Depth of this mount is 5 to 20 centimetres. This wall mount is specially made to be used in video walls. The screen easily can be pulled out with the pull-out system.
Neomounts LED-VW1750BLACK is suitable for flat screens up to 55" (140 cm). The weight capacity of this product is 35 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 200x200 to 600x400mm.
Create a clean design videowall presentation with the Neomounts LED-VW1750BLACK videowall mount solution!
Specifications
| Brand | NEOMOUNTS |
|---|---|
| Manufacturer part no. | LED-VW1750BLACK |
| Our part no. | Q610870 |
| EAN | 8717371447311 |
| Category | Monitors & Displays › Monitor Mounts & Stands |
| Weight | 11.3 kg |
| Mounting | |
| Maximum weight capacity | 35 kg |
| Minimum screen size | 81.3 cm (32") |
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 35 kg |
| Maximum screen size | 139.7 cm (55") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,400 x 600,600 x 300,600 x 200,600 x 400 |
| Ergonomics | |
| Height adjustment range | 0 - 540 mm |
| Cable management | No |
| Height adjustment | 54 cm |
| Width adjustment | 101 cm |
| Distance to the wall (min) | 4.9 cm |
| Distance to the wall (max) | 22.3 cm |
| Design | |
| Type | Fixed floor stand |
| Product colour | Black |
| Housing material | Steel |
| Accepts padlock | No |
| Weight & dimensions | |
| Width | 1010 mm |
| Depth (max) | 22 cm |
| Height | 54 mm |
| Weight | 9.23 kg |
| Width adjustment range | 0 - 1010 mm |
| Packaging data | |
| Package width | 635 mm |
| Package depth | 85 mm |
| Package height | 1105 mm |
| Package weight | 11.8 kg |
| Technical details | |
| Package net weight | 11.8 kg |
| Other features | |
| Country of origin | China |
| Depth adjustment range | 49 - 223 mm |
| Logistics data | |
| Master (outer) case net weight | 11.8 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 15 pc(s) |
| Quantity per master (outer) case | 1 pc(s) |
| Master (outer) case width | 635 mm |
| Master (outer) case length | 85 mm |
| Master (outer) case height | 1105 mm |
| Master (outer) case gross weight | 11.8 kg |
| Products per master (outer) case | 1 pc(s) |
