Description

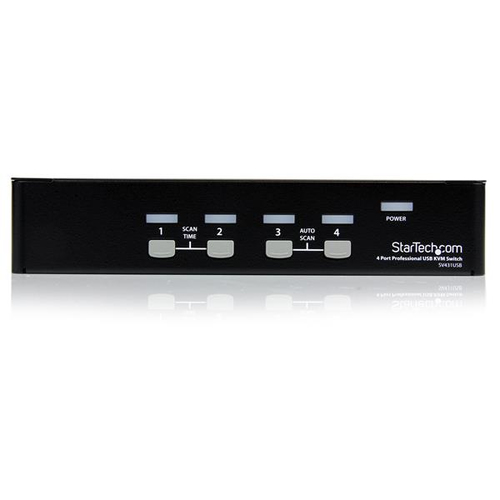

StarTech.com 4 Port Professional VGA USB KVM Switch with Hub - TAA, 1920 x 1440 pixels, Rack mounting, 1U, Black

Control up to 4 PC or Mac® computers from a single keyboard, mouse and monitor and share any USB device between all connected computers

The SV431USB 4 Port rack mountable VGA USB KVM Switch with Hub offers simple control of up to four computers from a single monitor/display and USB peripheral set (keyboard, mouse).

The USB KVM switch features an integrated 4 port USB hub, allowing you to share connected USB peripherals between the four controlled PC/Mac computers as though the devices were connected directly.

Offering convenient placement and installation options, the KVM switch features a 1U rack-mountable form factor and rear port connection to master and slave computers, allowing you to make the necessary device connections without disrupting your workspace.

A cross-platform solution, the KVM switch supports high resolution applications at up to 1920x1440 and provides a smooth operating experience when controlling mixed (Windows/Mac OS/Linux) environments.

This product is TAA compliant and backed by a Startech.com 3 year warranty with free lifetime technical support.

Rackmount your KVM switch

If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.

Specifications

BrandSTARTECH
Manufacturer part no.SV431USB
Our part no.V930458
EAN0065030787192
CategoryNetworking › Other (0406)
Weight1.2 kg

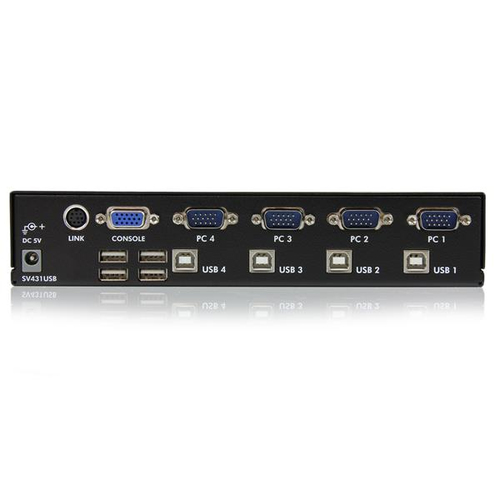

Ports & interfaces
Number of computers controlled4
Keyboard port typeUSB
Mouse port typeUSB
Video port typeVGA
Console portsUSB A, VGA (D-Sub)
Console USB ports quantity4
Audio connectionsNo
DC-in jackYes
Performance
Maximum resolution1920 x 1440 pixels
Scan interval3,8,15,30 s
Daisy chainNo
Number of users1 user(s)
Design
Rack mountingYes
Rack capacity1U
Product colourBlack
Housing materialSteel
Maximum cable length5 m
Hot keysNo
Mean time between failures (MTBF)82506 h
CertificationCE, FCC, REACH, TAA, cUR
Display
Built-in displayNo
On Screen Display (OSD)No
Power
Input voltage110-240 V
Input current0.4 A
Output voltage5 V
Output current2 A
Power plug typeType N
Sustainability
Compliance certificatesRoHS
Weight & dimensions
Width130 mm
Depth220 mm
Height44 mm
Weight988 g
Packaging data
Package width195 mm
Package depth296 mm
Package height74 mm
Package weight1.3 kg

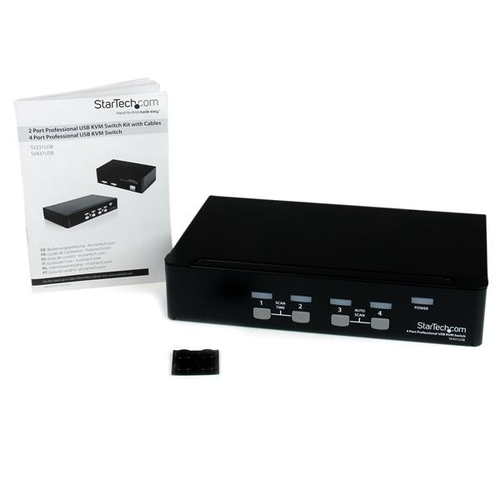

Packaging content
ManualYes
Rubber feetYes
Other features
IP controlNo
Logistics data
Harmonized System (HS) code85176200
Master (outer) case width455 mm
Master (outer) case length415 mm
Master (outer) case height330 mm
Products per master (outer) case12 pc(s)
