Description
StarTech.com 6ft (1.8m) 1-Port Professional RS422/485 USB Serial Cable Adapter with COM Retention, USB to RS422 Adapter - TAA, DB9 M, USB-A FM, 1.8 m, Black
Add an RS422/485 serial port to your system through USB; features COM port retention

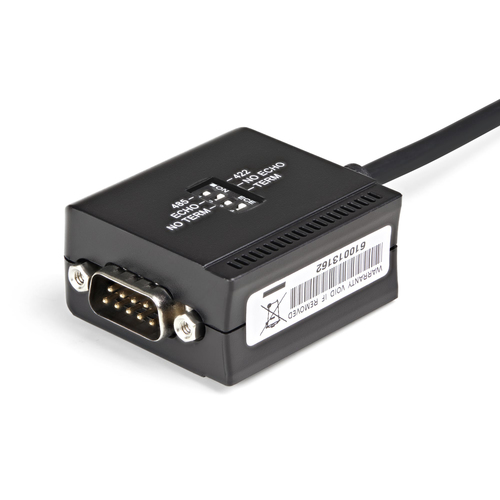

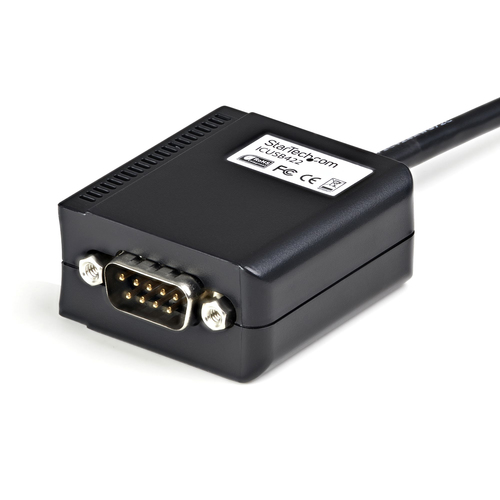

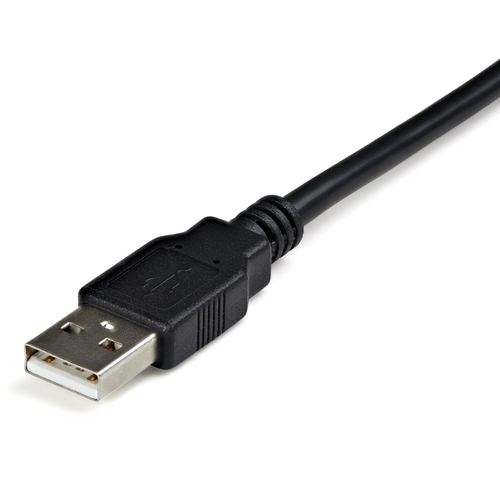

The ICUSB422 6ft Professional RS422/485 USB Serial Cable Adapter with COM Port Retention lets you connect RS422 or RS485 serial devices to your USB-enabled computer. The adapter features a 9-pin (DB9) male serial connector as well as dipswitch controls for easy port configuration, and requires minimal software.
The serial adapter is USB-powered, eliminating the aggravation of requiring an external power adapter. With COM port retention, assigned port settings are saved, so you can disconnect and reconnect the adapter with virtually no configuration required on the host computer.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | ICUSB422 |
| Our part no. | V930919 |
| EAN | 0065030836548 |
| Category | Cables & Adapters › Other (1204) |
| Weight | 0.2 kg |
| Ports & interfaces | |
| Connector 1 | DB9 M |
| Connector 2 | USB-A FM |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable length | 1.8 m |
| Performance | |
| Product colour | Black |
| Compatible operating systems | Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11 Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 macOS 10.6 to 10.15, 11.0, 12.0, 13.0 Linux Kernel 3.0.x+ |
| Weight & dimensions | |
| Weight | 100 g |
| Packaging data | |
| Package width | 145 mm |
| Package depth | 209 mm |
| Package height | 42 mm |
| Package weight | 220 g |
| Other features | |
| Minimum system requirements | Win 98SE/ ME/ 2000/ XP(32/64bit)/ 2003(32/64bit)/ Vista(32/64bit)/ 2008(32/64bit)/ CE(4.2/5.2/6.0) Mac 9.8/OS X Linux 2.4.x + |
| Dimensions (WxDxH) | 41.5 x 1778 x 22.1 mm |
| Logistics data | |
| Products per master (outer) case | 50 pc(s) |
| Master (outer) case width | 448 mm |
| Master (outer) case length | 532 mm |
| Master (outer) case height | 332 mm |
