Description
StarTech.com 4 Port DVI VGA Dual Monitor KVM Switch USB with Audio & USB 2.0 Hub - TAA, 1920 x 1200 pixels, 18 W, Black
Share a keyboard and mouse as well as 1 VGA and 1 DVI displays/monitors between 4 multimedia computers
The SV431DDVDUA 4-port DVI VGA dual monitor KVM switch lets you control 4 Dual Display computers using a single USB mouse and keyboard peripheral set.
This dual view KVM switch provides 1 VGA and 1 DVI-I port per computer connection for high-resolution video, as well as audio switching capability between connected computers.
The DVI/VGA KVM switch features an integrated 2-port USB hub that allows USB 2.0 peripherals to be shared between connected computers, and offers a compact design with a rugged metal chassis for durable performance.
NOTE: While both DVI-I (analog) and DVI-D (digital) are supported by the KVM, source PCs must output the same signal for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. If necessary, please contact technical support for assistance identifying your source.
Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | SV431DDVDUA |
| Our part no. | V930965 |
| EAN | 0065030835701 |
| Category | Networking › KVM & Extenders |
| Weight | 1.8 kg |
| Ports & interfaces | |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA/DVI-I |
| DVI-I ports quantity | 5 |
| VGA (D-Sub) ports quantity | 5 |
| Console ports | 3.5mm headphone, 3.5mm mic, DVI-I, USB A, VGA (D-Sub) |
| Console USB ports quantity | 4 |
| USB connector type | USB Type-A |
| Audio connections | Yes |
| Headphone outputs | 1 |
| Number of microphone inputs | 1 |
| DC-in jack | Yes |
| Performance | |
| Maximum resolution | 1920 x 1200 pixels |
| Daisy chain | No |
| Number of users | 1 user(s) |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Yes |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 140000 h |
| Certification | CE, FCC, UL, REACH |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| Input voltage | 100 - 240 V |
| Input current | 0.8 A |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, UK, US |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 220 mm |
| Depth | 163 mm |
| Height | 60 mm |
| Weight | 1.3 kg |
| Packaging data | |
| Package width | 255 mm |
| Package depth | 300 mm |
| Package height | 87 mm |
| Package weight | 1.8 kg |
| Packaging content | |
| Manual | Yes |

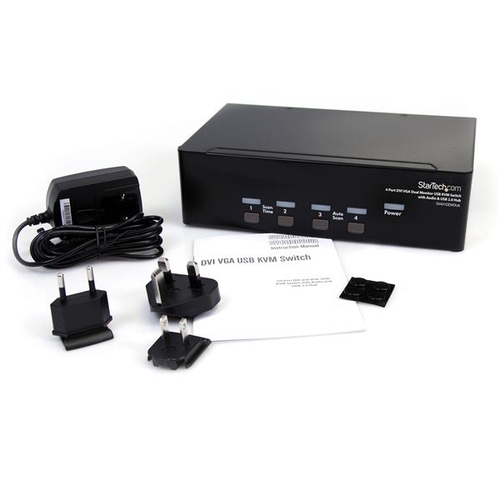

| AC adapter included | Yes |
| Rubber feet | Yes |
| Other features | |
| IP control | No |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 318 mm |
| Master (outer) case length | 506 mm |
| Master (outer) case height | 284 mm |
| Products per master (outer) case | 6 pc(s) |
