Description
StarTech.com 1 ft Coax HD15 VGA to 5 BNC RGBHV Monitor Cable - M/F, 0.3 m, VGA (D-Sub), 5 x BNC, Male, Female, Straight
Connect a BNC video source to a VGA distribution amplifier or PC

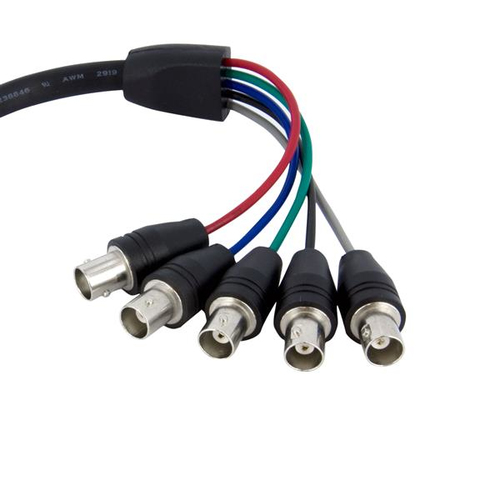

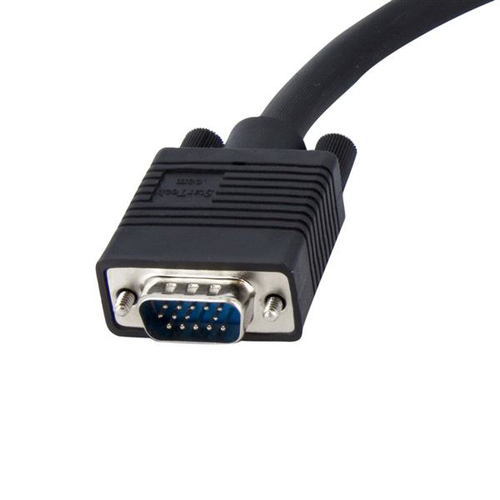

The VGABNCMF1 1-foot Coax HD15 VGA to 5 BNC RGBHV Adapter Cable features an HD15 VGA (male) connector and 5 BNC (RGBHV) (female) connectors, allowing you to connect your existing BNC video source to a VGA distribution amplifier or PC. The cable can also be used with a VGA out signal, breaking out to 5 BNC female connectors that can be used with a 5 BNC (M-M) cable for use with a BNC monitor/display.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | VGABNCMF1 |
| Our part no. | V930966 |
| EAN | 0065030836722 |
| Category | Cables & Adapters › VGA & Video Adapters |
| Weight | 0.1 kg |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Nickel |
| Cable length | 0.3 m |
| Connector 1 | VGA (D-Sub) |
| Connector 2 | 5 x BNC |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Product colour | Black |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 28 |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, UL, REACH |
| Weight & dimensions | |
| Cable diameter | 8.5 mm |
| Weight | 103 g |
| Packaging data | |
| Package width | 124 mm |
| Package depth | 176 mm |
| Package height | 24 mm |
| Package weight | 108 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 370 mm |
| Master (outer) case length | 424 mm |
| Master (outer) case height | 282 mm |
| Products per master (outer) case | 200 pc(s) |
