Description
StarTech.com 3ft (91cm) Panel Mount DisplayPort Cable - 4K x 2K - DisplayPort 1.2 Extension Cable Male to Female - DP Video Extender Cord with Panel Mount DP Connector - DP Monitor Cable, 0.91 m, DisplayPort, DisplayPort, Male, Female, 3840 x 2400 pixels
Allows a DisplayPort connection to be mounted on a secure easily accessible panel.

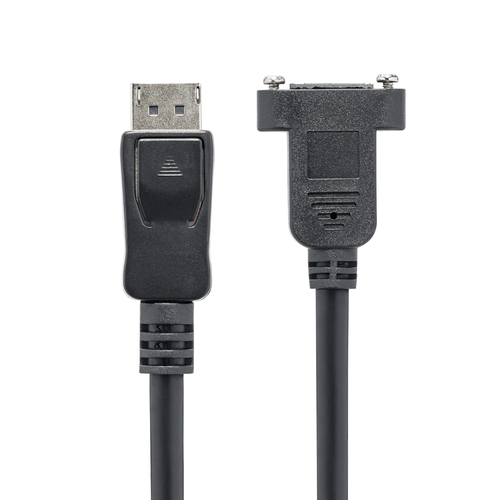

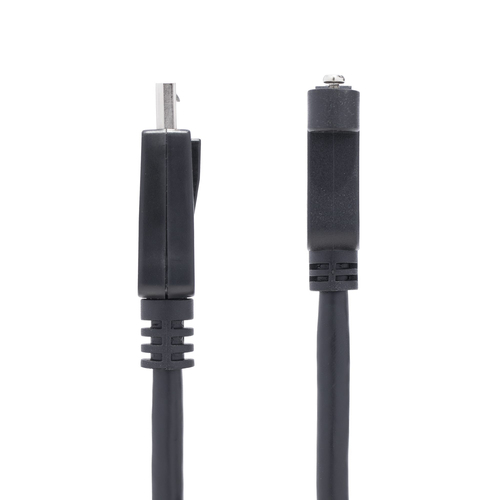

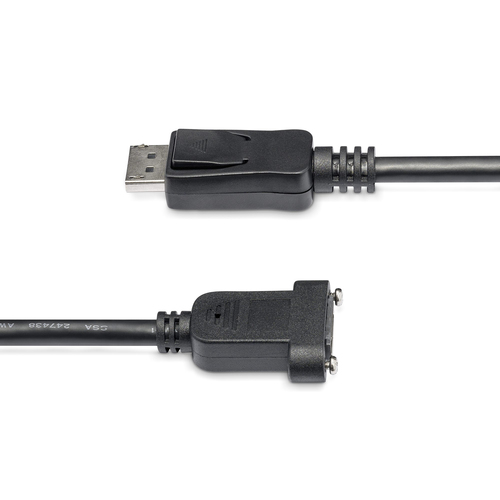

This 3ft panel mount DisplayPort cable features a DisplayPort male connector on one end, and a DisplayPort panel mount (female) molded connector on the other, providing a well-secured, easy to access DisplayPort connection on any machine port or faceplate.
Backed by StarTech.com's Lifetime Warranty
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | DPPNLFM3 |
| Our part no. | V930972 |
| EAN | 0065030837026 |
| Category | Cables & Adapters › VGA & Video Adapters |
| Weight | 0 kg |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| DisplayPort version | 1.2 |
| Maximum resolution | 3840 x 2400 pixels |
| Maximum refresh rate | 120 Hz |
| Cable length | 0.91 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Latching connectors | Yes |
| Product colour | Black |
| Cable rating | CMG (CM) |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 28 |
| Bandwidth | 21600 MB/s |
| Multi-Stream Transport (MST) | Yes |
| Number of conductors | 19 |
| Certificates | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Cable diameter | 7.3 mm |
| Weight | 78 g |
| Packaging data | |
| Package width | 198 mm |
| Package depth | 182 mm |
| Package height | 22 mm |
| Package weight | 94 g |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 325 mm |
| Master (outer) case length | 505 mm |
| Master (outer) case height | 220 mm |
| Products per master (outer) case | 80 pc(s) |
