Description
StarTech.com 3ft (91cm) HDMI Female to Male Adapter, 4K High Speed Panel Mount HDMI Cable, 4K 30Hz UHD HDMI, 10.2 Gbps Bandwdith, 4K HDMI Female to HDMI Male, HDMI Panel Mount Connector Cable, 0.9 m, HDMI Type A (Standard), HDMI Type A (Standard), 3D, 10.2 Gbit/s, Black
Allows an HDMI® connection to be mounted on a secure and easily accessible panel.

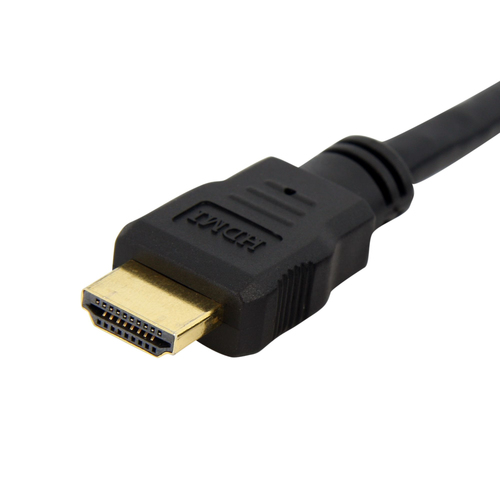

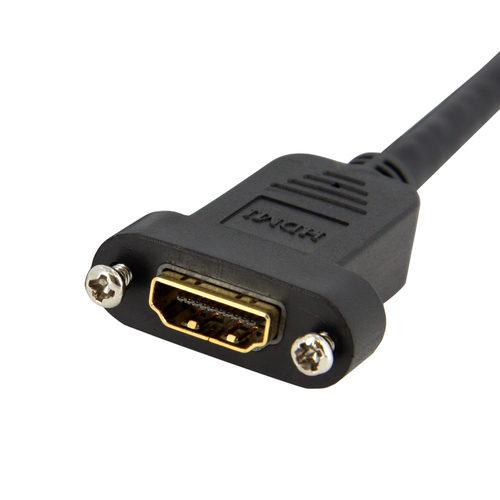

The HDMIPNLFM3 3ft High Speed HDMI® Cable for Panel Mount features an HDMI male connector on one end, and an HDMI panel mount (female) molded connector on the other, providing a well-secured, easy to access HDMI connection on any machine port or faceplate.
Backed by StarTech.com's Lifetime Warranty.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | HDMIPNLFM3 |
| Our part no. | V930980 |
| EAN | 0065030837033 |
| Category | Cables & Adapters › HDMI Cables & Extenders |
| Weight | 0 kg |
| Features | |
| Cable length | 0.9 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Product colour | Black |
| HDMI version | 1.4 |
| 3D | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160 |
| Dolby technologies | Dolby Digital Plus, Dolby TrueHD |
| Audio Return Channel (ARC) | Yes |
| HDCP | Yes |
| HDCP version | 1.4 |
| Data transfer rate | 10.2 Gbit/s |
| Maximum refresh rate | 120 Hz |
| AWG wire size | 28 |
| Connector contacts plating | Gold |
| Cable rating | CMG (CM) |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Plug and Play | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
| Cable diameter | 6.5 mm |
| Weight | 79 g |
| Packaging data | |
| Package width | 198 mm |
| Package depth | 183 mm |
| Package height | 19 mm |
| Package weight | 84 g |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 384 mm |
| Master (outer) case length | 440 mm |
| Master (outer) case height | 302 mm |
| Products per master (outer) case | 80 pc(s) |
