Description

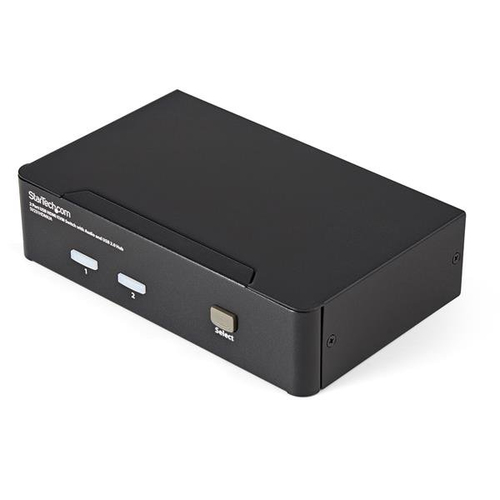

StarTech.com 2 Port USB HDMI KVM Switch with Audio and USB 2.0 Hub - TAA, 1920 x 1200 pixels, Full HD, 18 W, Black
Share a keyboard, mouse and HDMI® monitor between 2 multimedia computers
The SV231HDMIUA 2-port USB HDMI® KVM Switch lets you control two USB-enabled multimedia computers or devices with HDMI video interfaces, using a single peripheral set/console (USB keyboard, mouse, monitor, speakers and microphone).
A highly versatile KVM solution, the USB HDMI KVM Switch features an integrated 2-port USB 2.0 hub that lets selected computers access shared high speed USB devices, eliminating the cost of duplicate USB peripheral purchases.
Ensuring high quality video capability, the HDMI KVM switch supports HD resolutions of up to 1920 x 1200. Offering genuine digital signal transmission over the cable, this switch can be used to share one HD panel between multiple HDMI sources such as Blu-Ray players, Video Game consoles and HD media centers.
The switch also supports audio and microphone switching functions and allows you to select connected computers, USB device hub ports and audio/mic channels either simultaneously or independently using either front-panel push-buttons or keyboard hotkeys.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | SV231HDMIUA |
| Our part no. | V931030 |
| EAN | 0065030837521 |
| Category | Networking › Other (0406) |
| Weight | 1 kg |
| Ports & interfaces | |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |

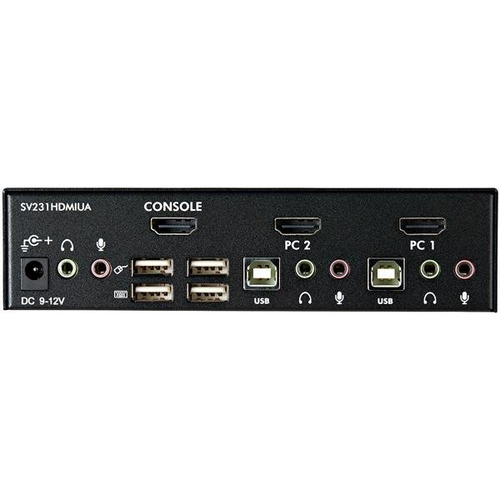

| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB A |
| Console USB ports quantity | 4 |
| Headphone outputs | 3 |
| Number of microphone inputs | 3 |
| Performance | |
| HD type | Full HD |
| Maximum resolution | 1920 x 1200 pixels |
| Daisy chain | No |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Mean time between failures (MTBF) | 126813 h |
| Certification | R0HS |
| Display | |
| On Screen Display (OSD) | No |
| Power | |
| Input voltage | 100 - 240, 12 V |
| Input current | 0.8 A |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| Power plug type | Type M |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 125 mm |
| Depth | 70 mm |
| Height | 40 mm |
| Weight | 634 g |
| Packaging data | |
| Package width | 188 mm |
| Package depth | 252 mm |
| Package height | 98 mm |
| Package weight | 1.1 kg |
| Packaging content | |
| Manual | Yes |
| AC adapter included | Yes |
| Rubber feet | Yes |
| Other features | |
| Connectivity technology | Wired |
| I/O ports | 1x HDMI (F) 4x USB A (F) 6x 3.5mm (F) 2x USB B (F) 2x mini-HDMI (F) |
| Dimensions (WxDxH) | 124.8 x 70 x 40 mm |
| Ports quantity | 2 |
| Power requirements | AC 110 - 240 V |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 280 mm |
| Master (outer) case length | 404 mm |
| Master (outer) case height | 342 mm |
| Products per master (outer) case | 6 pc(s) |
