Description
StarTech.com 2 Port Dual DisplayPort USB KVM Switch with Audio & USB 2.0 Hub - TAA, 3840 x 2400 pixels, 4K Ultra HD, 18 W, Black
Control 2 high-resolution dual DisplayPort computers with a single console
The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter.
Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.
Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | SV231DPDDUA |
| Our part no. | V931089 |
| EAN | 0065030839266 |
| Category | Networking › KVM & Extenders |
| Weight | 1.1 kg |
| Ports & interfaces | |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 6 |

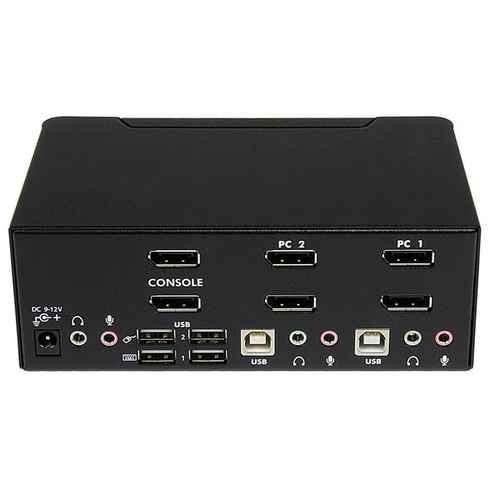

| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| Console USB ports quantity | 2 |
| USB hub | Yes |
| USB connector type | USB Type-A |
| Audio connections | Yes |
| Headphone outputs | 3 |
| Number of microphone inputs | 3 |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | No |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2400 pixels |
| DDC2B support | Yes |
| Hot-Plug support | Yes |
| Daisy chain | No |
| Number of users | 1 user(s) |
| Audio channels | 7.1 |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Certification | CE, FCC, REACH, TAA |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| Input voltage | 110 - 240 V |
| Input current | 0.8 A |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, UK, US |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 161 mm |
| Depth | 100 mm |
| Height | 57.5 mm |
| Weight | 734 g |
| Packaging data | |
| Package width | 252 mm |
| Package depth | 188 mm |
| Package height | 100 mm |
| Package weight | 1.19 kg |
| Packaging content | |
| Manual | Yes |
| Other features | |
| Audio support | Yes |
| IP control | No |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 403 mm |
| Master (outer) case length | 322 mm |
| Master (outer) case height | 285 mm |
| Products per master (outer) case | 6 pc(s) |
