Description

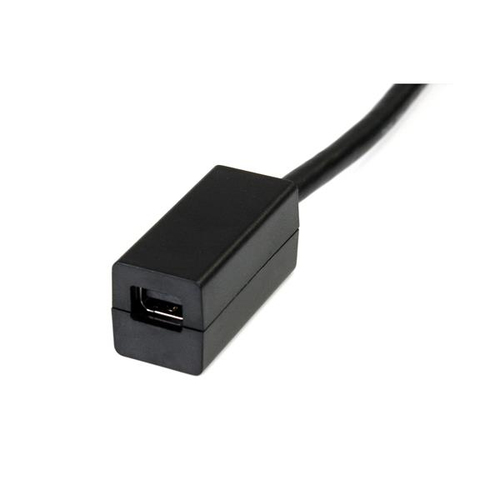

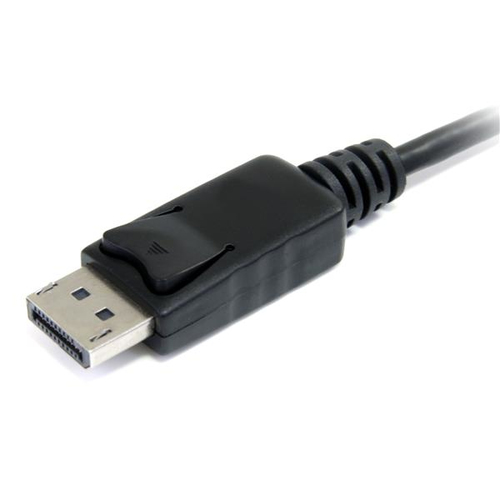

StarTech.com 6in (15cm) DisplayPort to Mini DisplayPort Cable - 4K x 2K UHD Video - DisplayPort Male to Mini DisplayPort Female Adapter Cable - DP Computer to mDP 1.2 Monitor Extension Cable, 0.152 m, Mini DisplayPort, DisplayPort, Male, Female, 3840 x 2400 pixels
Connect your Mini DisplayPort® monitor to a standard DisplayPort source.
The DP2MDPMF6IN DisplayPort® to Mini DisplayPort Adapter turns a mini DisplayPort (male) connector into a regular DisplayPort (male) connector, making it easy to connect a mini DisplayPort-equipped monitor to a laptop that only provides a standard DisplayPort output (e.g. Apple®; Toshiba® etc.).
This 6in DisplayPort to Mini DisplayPort Video Cable Adapter is designed & manufactured to DisplayPort v1.2 standards; Max resolution: 2560x1600 60Hz (depends on the cable quality; Attached cable must be at least DP 1.2).
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | DP2MDPMF6IN |
| Our part no. | V931095 |
| EAN | 0065030839921 |
| Category | Cables & Adapters › VGA & Video Adapters |
| Weight | 0 kg |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Nickel |
| DisplayPort version | 1.2 |
| Maximum resolution | 3840 x 2400 pixels |
| Supported graphics resolutions | 2560 x 1600 (WQXGA), 3840 x 2400 |
| Maximum refresh rate | 60 Hz |
| Cable length | 0.152 m |
| Connector 1 | Mini DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Latching connectors | Yes |
| Product colour | Black |
| Cable rating | CMG (CM) |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 32 |
| Bandwidth | 21600 MB/s |
| Multi-Stream Transport (MST) | Yes |
| Number of conductors | 19 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
| Cable diameter | 4.7 mm |
| Weight | 14 g |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 99 mm |
| Package height | 22 mm |
| Package weight | 22 g |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 513 mm |
| Master (outer) case length | 331 mm |
| Master (outer) case height | 242 mm |
| Products per master (outer) case | 240 pc(s) |
