Description

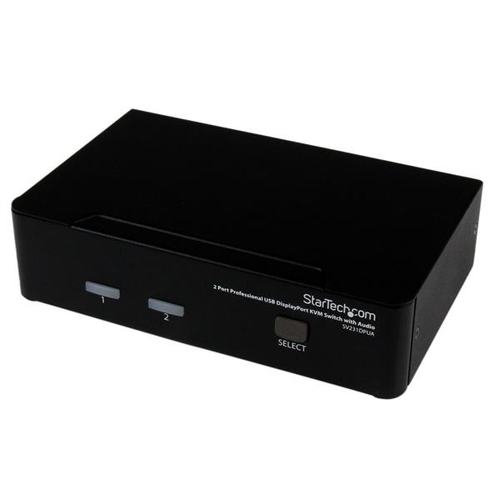

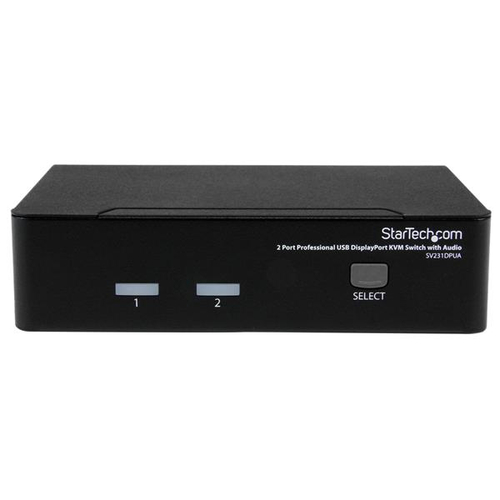

StarTech.com 2 Port Professional USB DisplayPort KVM Switch with Audio - TAA, 3840 x 2400 pixels, 4K Ultra HD, 24 W, Black
Control two computers from a single console, with high-resolution DisplayPort® video, USB keyboard, mouse, and audio
The SV231DPUA 2-Port USB DisplayPort KVM Switch delivers dual computer KVM control, for demanding high definition multimedia applications. Supporting DisplayPort connections with a native resolution of 2560 x 1600, and support for both 7.1 HD digital audio (when connected to supporting displays and sources) and 3.5mm stereo analog audio/mic.
A simple, yet comprehensive KVM solution, the 2-port switch features both front-panel push-buttons and hotkey switching, and offers a small form factor design with connection ports situated on the rear panel. A Plug-and-Play USB 2.0 hub port allows you to share an additional USB peripheral between the 2 connected computers, avoiding the expense of purchasing duplicate peripheral devices.
A suitable solution for medical applications (MRI, X-ray diagnostics etc.), the KVM switch supports a maximum resolution of 3840 x 2400 at a reduced refresh rate.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | SV231DPUA |
| Our part no. | V931105 |
| EAN | 0065030839952 |
| Category | Networking › KVM & Extenders |
| Weight | 1.1 kg |
| Ports & interfaces | |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 2 |

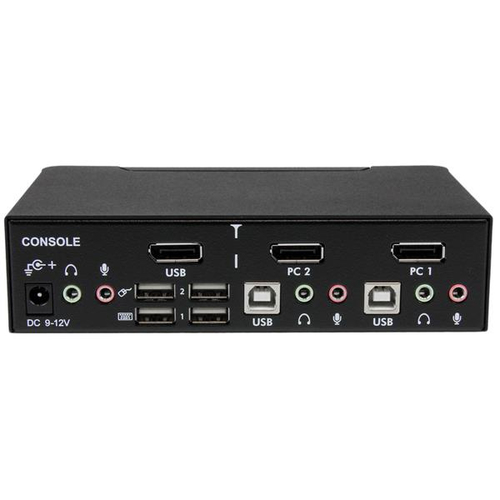

| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| Console USB ports quantity | 4 |
| USB hub | Yes |
| USB connector type | USB Type-A |
| Audio connections | Yes |
| Headphone outputs | 3 |
| Number of microphone inputs | 3 |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | No |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2400 pixels |
| DDC2B support | Yes |
| Hot-Plug support | Yes |
| Plug and Play | Yes |
| Daisy chain | No |
| Audio channels | 7.1 |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Certification | CE, UL, FCC, REACH |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| Input voltage | 110 - 240 V |
| Input current | 0.8 A |
| Output voltage | 12 V |
| Output current | 2 A |
| Power consumption (typical) | 24 W |
| External power adapter | Yes |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, UK, US |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 220 mm |
| Depth | 130 mm |
| Height | 44 mm |
| Weight | 1.1 kg |
| Packaging data | |
| Package width | 256 mm |
| Package depth | 187 mm |
| Package height | 99 mm |
| Package weight | 1.3 kg |

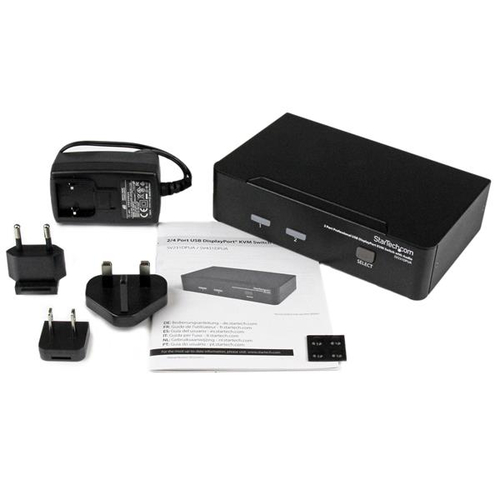

| Packaging content | |
| Manual | Yes |
| AC adapter included | Yes |
| Rubber feet | Yes |
| Other features | |
| Audio support | No |
| IP control | No |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 410 mm |
| Master (outer) case length | 283 mm |
| Master (outer) case height | 339 mm |
| Products per master (outer) case | 6 pc(s) |
