Description
StarTech.com 3ft (91cm) Panel Mount DisplayPort Cable - 4K x 2K - DisplayPort 1.2 Extension Cable Male to Female - DP Video Extender Cord with Panel Mount DP Connector - DP Monitor Cable, 0.9 m, DisplayPort, DisplayPort, Male, Female, 4096 x 2160 pixels
Allows a DisplayPort connection to be mounted on a secure easily accessible panel

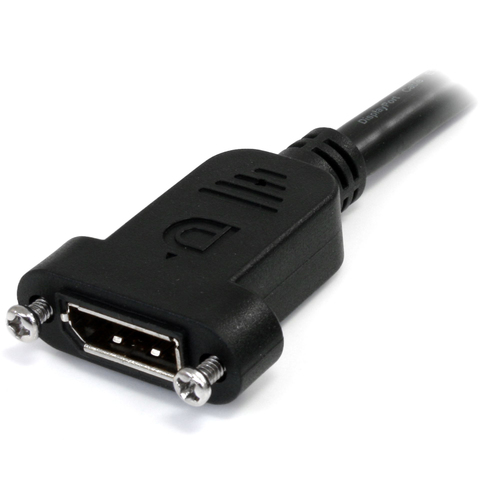

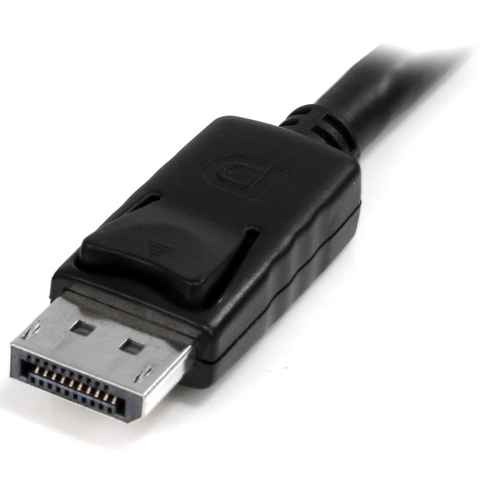

The DPPNLFM3PW 3ft DisplayPort Extension Panel Mount Cable features one DP male connector and one panel mount DP female connector, providing a well-secured, easy to access DisplayPort connection on your PC or faceplate, and allowing you to customize your systems to suit your needs. If power is required, the DisplayPort Cable uses all 20 pins and can deliver power accordingly.
The DPPNLFM3PW is backed by StarTech.com’s lifetime warranty for guaranteed reliability.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | DPPNLFM3PW |
| Our part no. | V931161 |
| EAN | 0065030840866 |
| Category | Cables & Adapters › Patch Cables & Power |
| Weight | 0 kg |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Nickel |
| DisplayPort version | 1.2 |
| Maximum resolution | 4096 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Cable length | 0.9 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Latching connectors | Yes |
| Product colour | Black |
| Cable rating | CMG (CM) |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 28 |
| Bandwidth | 21600 MB/s |
| Plug and Play | Yes |
| Multi-Stream Transport (MST) | Yes |
| Number of conductors | 20 |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 40 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
| Weight | 83 g |
| Packaging data | |
| Package width | 125 mm |
| Package depth | 147 mm |
| Package height | 30 mm |
| Package weight | 88 g |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 320 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 210 mm |
| Products per master (outer) case | 80 pc(s) |
