Description
StarTech.com 3.5in Drive Bay IDE to Single CF SSD Adapter Card Reader - TAA, IDE, CF, 0.133 Gbit/s, -55 - 85 °C, -55 - 85 °C, 5 - 85%

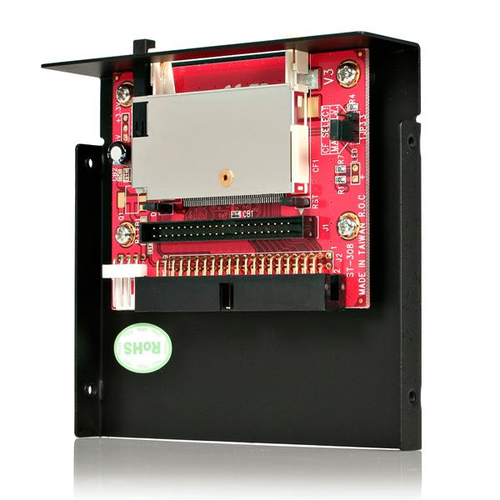

Connect a CF card to a computer through an IDE connector

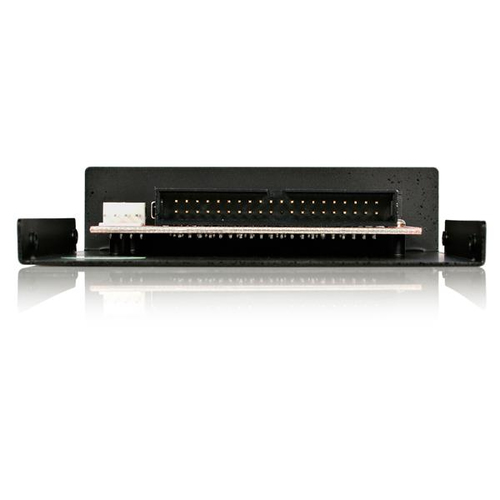

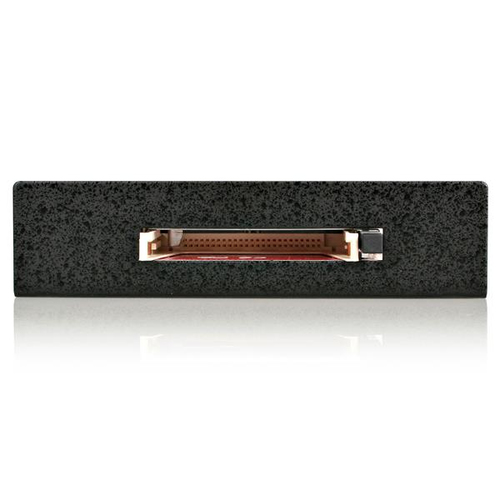

This Compact Flash IDE adapter is a perfect solution for accessing CompactFlash (CF I, CF II) and IBM Micro Drive media, allowing you to access the flash/micro drive media as if it were an IDE hard drive. The CF/IDE adapter can be installed in the computer case through simple mounting in an available 3.5in drive bay, for connection to the computer IDE bus through either a 40 or 44-pin connection. Designed and constructed to provide a reliable media card platform, the CF IDE adapter is backed by StarTech.com's 2-year warranty.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | 35BAYCF2IDE |
| Our part no. | V931189 |
| EAN | 0065030824194 |
| Category | Hard Drives & SSDs › Other (0524) |
| Weight | 0.2 kg |
| Ports & interfaces | |
| Host interface | IDE |
| Output interface | CF |
| Design | |
| Internal | Yes |
| Features | |
| Data transfer rate (max) | 0.133 Gbit/s |
| Operational conditions | |
| Operating temperature (T-T) | -55 - 85 °C |
| Storage temperature (T-T) | -55 - 85 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 97 mm |
| Depth | 100 mm |
| Height | 25 mm |
| Weight | 145 g |
| Packaging data | |
| User guide | Yes |
| Package width | 143 mm |
| Package depth | 173 mm |
| Package height | 34 mm |
| Package weight | 215 g |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 360 mm |
| Master (outer) case length | 370 mm |
| Master (outer) case height | 320 mm |
