Description

StarTech.com 8 Port Rackmount USB VGA KVM Switch w/ Audio (Audio Cables Included) - TAA, 1920 x 1440 pixels, Rack mounting, 48 W, 1U, Black

Control up to 8 VGA and USB computers from a single keyboard, mouse and monitor

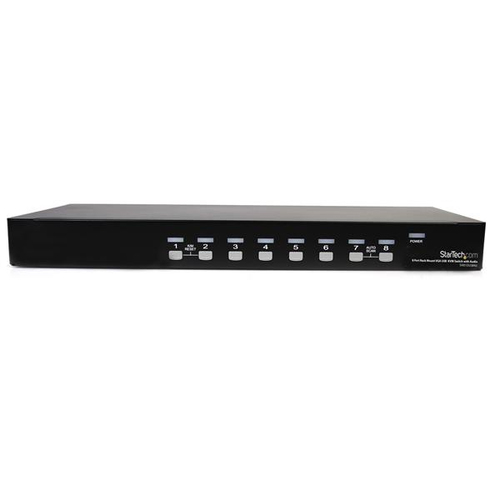

The SV831DUSBAU 8 Port Rack Mount USB VGA KVM Switch (with Audio Cables Included) allows you to control up to 8 USB computers using a single keyboard, mouse and monitor, and features Audio and Microphone ports to switch between audio signals as well as PC ports.

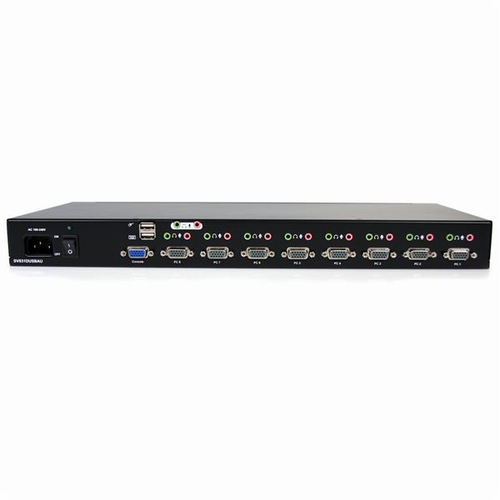

Based on a 1U rack mountable slim form factor design, this 8 Port USB KVM uses rear cable connections to maximize space efficiency. Multiple KVM units can also be connected (cascaded) together for control of up to 64 computers, ensuring a scalable KVM solution that can be expanded as necessary.

To ensure seamless operation, the switch features automatic and manual scan modes, supports both hot-key and front panel push-button switching, and features a convenient OSD (on-screen display) for added configuration options.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

The SV831DUSBAU only works with specific 2-in-1 VGA and USB cables (sold separately), a list of StarTech.com approved cables are below:

6 ft Ultra Thin USB VGA 2-in-1 KVM Cable

6 ft Ultra Thin USB VGA 2-in-1 KVM Cable

10 ft Ultra Thin USB VGA 2-in-1 KVM Cable

15 ft Ultra Thin USB VGA 2-in-1 KVM Cable

Specifications

BrandSTARTECH
Manufacturer part no.SV831DUSBAU
Our part no.V931226
EAN0065030837248
CategoryNetworking › KVM & Extenders
Weight4.6 kg
Ports & interfaces
Number of computers controlled8
Keyboard port typeUSB
Mouse port typeUSB
Video port typeVGA
Console ports3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub)
Console USB ports quantity2
USB 2.0 ports quantity2
USB connector typeUSB Type-A
Headphone outputs8
Number of microphone inputs8
DC-in jackYes
Performance
Maximum resolution1920 x 1440 pixels
Maximum analog resolution1920 x 1440 pixels
Plug and PlayYes
Daisy chainYes
Number of users1 user(s)
Design
Rack mountingYes
Rack capacity1U
Product colourBlack
Housing materialSteel
CascadableYes
LED indicatorsYes
CertificationCE, FCC, UL
Display
On Screen Display (OSD)Yes
Power
Input voltage110-240 V
Input current1.8 A
Output voltage12 V
Output current4 A
Power consumption (typical)48 W
Power plug typeType M
Sustainability
Compliance certificatesRoHS
Operational conditions
Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%
Weight & dimensions
Width540 mm
Depth180 mm
Height45 mm
Weight2.6 kg
Packaging data
Package width598 mm
Package depth263 mm
Package height123 mm
Package weight4.7 kg

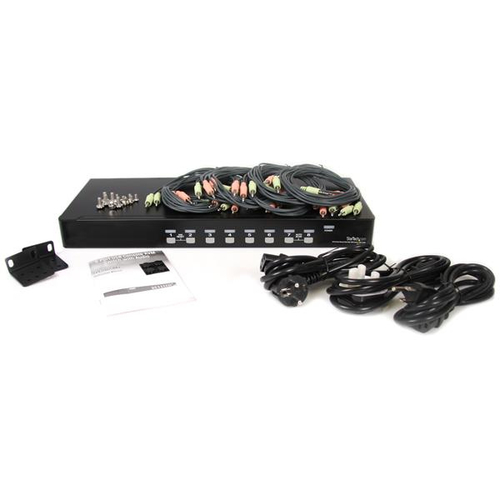

Packaging content
Cables includedAC
ManualYes
AC adapter includedYes
Rubber feetYes
Other features
Audio supportYes
IP controlNo
Logistics data
Harmonized System (HS) code85176200
Master (outer) case width292 mm
Master (outer) case length610 mm
Master (outer) case height409 mm
Products per master (outer) case3 pc(s)
