Description
StarTech.com 16 Port 1U Rackmount USB KVM Switch with OSD - TAA, 1920 x 1440 pixels, Rack mounting, 1U, Black
Control up to 16 USB computers from a single keyboard, mouse and monitor
The SV1631DUSBU 16 Port 1U Rack Mountable USB KVM Switch with OSD lets you control 16 USB computers from a single console (USB keyboard, USB mouse, VGA monitor).

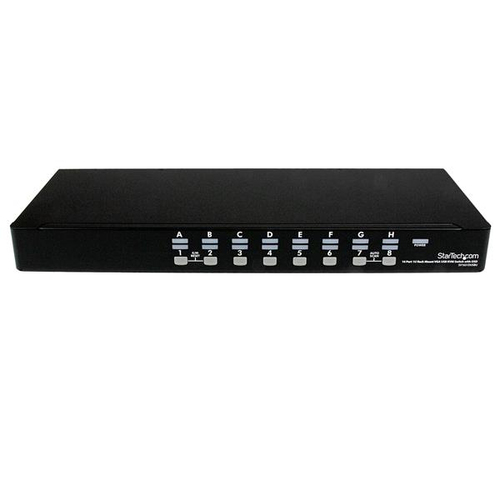

Convenient push-button and hot-key controls provide quick, reliable switching between connected computers while manual and auto-scan switching modes and an On Screen Display (OSD) offer additional control options.

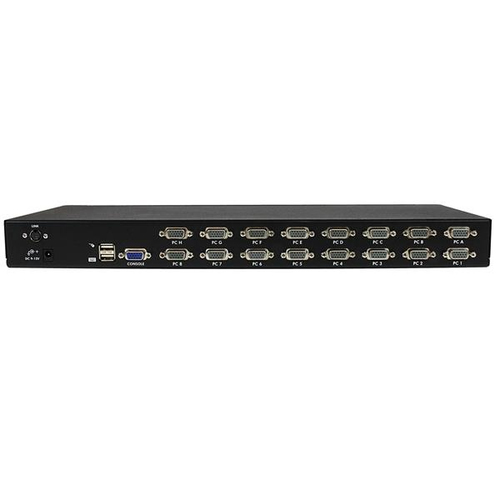

Designed to ensure maximum space efficiency, the USB KVM switch features a slim 1U design that fits neatly into a server equipment rack/cabinet with the included brackets, and can be cascaded with multiple KVM switches to deliver control of up to 136 computers from this single switch. Rear cable connections help to eliminate cable tangles and minimize workspace disruption.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
The SV1631DUSBU only works with specific 2-in-1 VGA and USB cables (sold separately), a list of StarTech.com approved cables are below:
6 ft Ultra Thin USB VGA 2-in-1 KVM Cable
6 ft Ultra Thin USB VGA 2-in-1 KVM Cable
10 ft Ultra Thin USB VGA 2-in-1 KVM Cable
15 ft Ultra Thin USB VGA 2-in-1 KVM Cable
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | SV1631DUSBU |
| Our part no. | V931229 |
| EAN | 0065030837224 |
| Category | Networking › KVM & Extenders |
| Weight | 3.5 kg |
| Ports & interfaces | |
| Number of computers controlled | 16 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| Console ports | USB A, VGA (D-Sub) |
| Console USB ports quantity | 2 |
| Audio connections | No |
| DC-in jack | Yes |
| Performance | |
| Maximum resolution | 1920 x 1440 pixels |
| Plug and Play | Yes |
| Daisy chain | Yes |
| Design | |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Yes |
| Display | |
| Built-in display | No |
| Power | |
| Input voltage | 110-240 V |
| Input current | 0.8 A |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Power plug type | Type M |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Weight & dimensions | |
| Width | 540 mm |
| Depth | 180 mm |
| Height | 45 mm |
| Weight | 3.1 kg |
| Packaging data | |
| Package width | 597 mm |
| Package depth | 265 mm |
| Package height | 91 mm |
| Package weight | 3.53 kg |

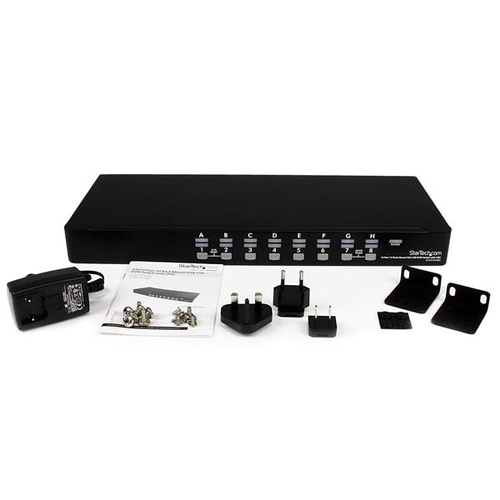

| Packaging content | |
| Manual | Yes |
| AC adapter included | Yes |
| Other features | |
| Audio support | No |
| IP control | No |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 613 mm |
| Master (outer) case length | 290 mm |
| Master (outer) case height | 412 mm |
| Products per master (outer) case | 4 pc(s) |
