Description
StarTech.com 4-port HDMI splitter and signal amplifier - TAA, HDMI, 4x HDMI, 1920 x 1200 pixels, Black, Steel, 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA)
Split an HDMI® audio and video signal to four displays simultaneously

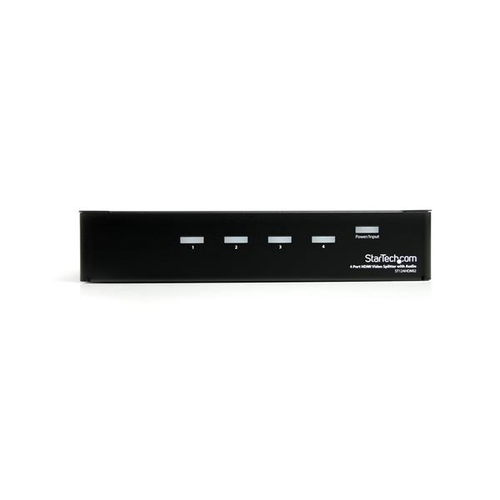

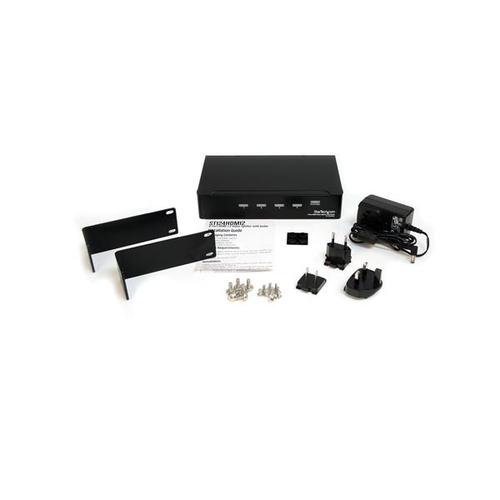

The ST124HDMI2 4 Port High Speed HDMI® Video Splitter with Audio lets you share a single HDMI source with up to 4 HDMI or DVI-D enabled displays/receivers, without sacrificing image or sound quality. Mounting brackets are included for a tidy, professional installation.

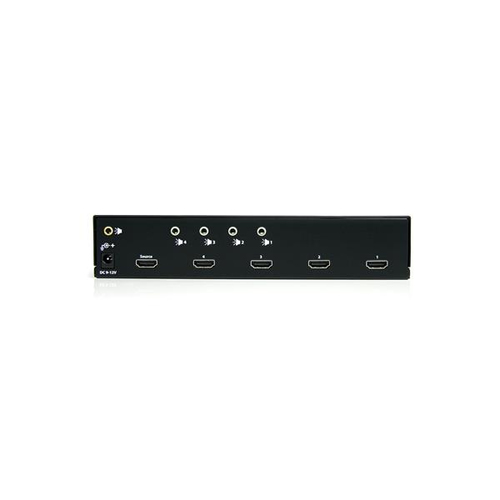

Supporting true HD video resolutions up to 1080p, this HDMI splitter allows you to situate your HDMI-capable displays up to 50 ft (15.2 m) away from the splitter. This versatile HDMI splitter features 3.5mm audio input and output connections giving you the option of sending your accompanying audio signal through the HDMI cable or through a separate 3.5mm stereo audio channel.
A perfect addition to virtually any application requiring the high quality video delivered by HDMI devices, the ST124HDMI2 video splitter is easy to install and provides flawless, distortion-free digital video.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | ST124HDMI2 |
| Our part no. | V931243 |
| EAN | 0065030841696 |
| Category | Cables & Adapters › HDMI Cables & Extenders |
| Weight | 1.9 kg |
| Ports & interfaces | |
| Video port type | HDMI |
| Video out | 4x HDMI |
| Video ports quantity | 4 |
| Audio ports quantity | 5 |
| DC-in jack | Yes |
| Features | |
| Product colour | Black |
| Housing material | Steel |
| Maximum resolution | 1920 x 1200 pixels |
| HDCP | Yes |
| Supported graphics resolutions | 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA) |
| Supported video modes | 720p, 1080p |
| Certification | CE, FCC, TAA, REACH |
| Power | |
| AC input voltage | 100 - 240 V |
| Input current | 0.8 A |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| Weight & dimensions | |
| Width | 135 mm |
| Depth | 220 mm |
| Height | 44 mm |
| Weight | 966 g |
| Packaging data | |
| Package width | 217 mm |
| Package depth | 417 mm |
| Package height | 85 mm |
| Package weight | 2 kg |
| Packaging content | |
| Manual | Yes |
| AC adapter included | Yes |
| Included power plug types | AU, EU, NA, UK |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Technical details | |
| Audio support | Yes |
| Cascadable | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 550 mm |
| Master (outer) case length | 443 mm |
| Master (outer) case height | 257 mm |
| Products per master (outer) case | 6 pc(s) |
