Description
StarTech.com 1U Hinged Wall Mount Patch Panel Bracket - 6 inch Deep - 19" Patch Panel Swing Rack for Shallow Network Equipment- 17lbs, Wall mounted rack, Black, 579.5 g
Wall mount a patch panel or network switch while providing hinged access to the back of the device

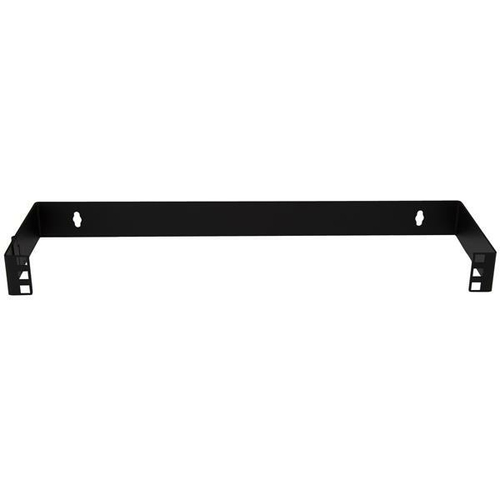

The WALLMOUNTH1 1U 19in Hinged Wall Mounting Bracket for Patch Panels is 6in deep and sturdily designed to provide a dependable solution for mounting a patch panel, or other slim 19in networking equipment to a wall.

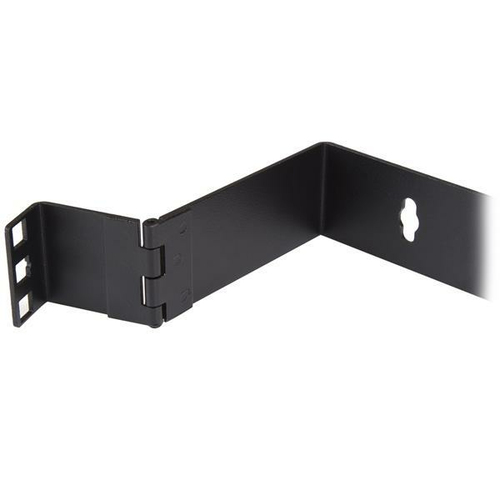

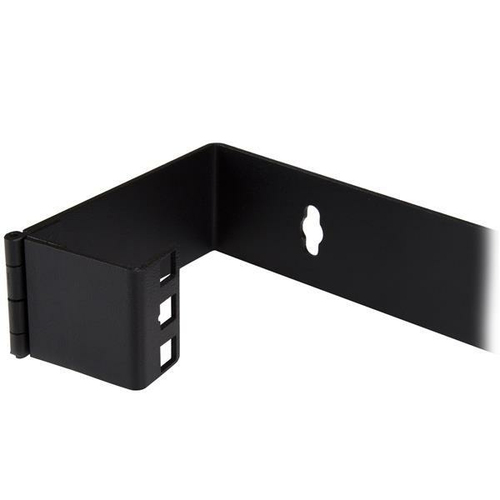

The patch panel wall mount features a hinged design for easy access to configuration buttons, ports and cables. The wall mounting holes are spaced 16 in. apart, making it suitable for mounting on almost any wall, based on common wall-frame stud spacing.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | WALLMOUNTH1 |
| Our part no. | V931249 |
| EAN | 0065030783507 |
| Category | Cables & Adapters › Cable Management |
| Weight | 1.1 kg |
| Features | |
| Type | Wall mounted rack |
| Product colour | Black |
| Number of fans | 0 fan(s) |
| Maximum weight capacity | 8 kg |
| Rack capacity | 1U |
| Mounting hole shape | Square |
| Frame type | Open |
| Castor wheels | No |
| Compliance industry standards | EIA-310-D |
| Certification | RoHS |
| Weight & dimensions | |
| Size (imperial) | 48.3 cm (19") |
| Width | 501 mm |
| Depth | 152 mm |
| Height | 44 mm |
| Mounting depth (min) | 15.2 cm |
| Weight | 579.5 g |
| Packaging data | |
| Package width | 530 mm |
| Package depth | 207 mm |
| Package height | 79 mm |
| Package weight | 843 g |
| Packaging content | |
| Screws included | Yes |
| Number of screws | 6 |
| Nuts included | Yes |
| Number of nuts | 4 |
| Logistics data | |
| Master (outer) case width | 1200 mm |
| Master (outer) case length | 520 mm |
| Master (outer) case height | 76 mm |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85389099 |
