Description

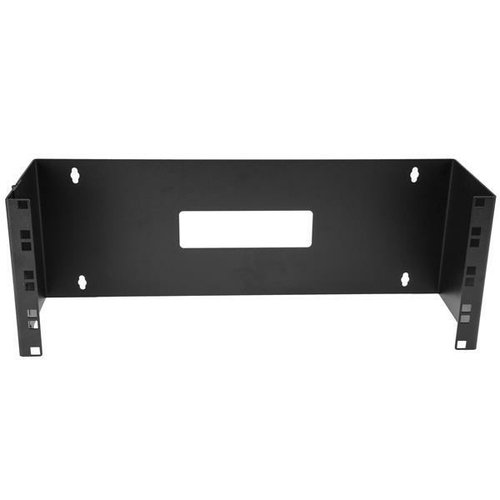

StarTech.com 4U Hinged Wall Mount Patch Panel Bracket - 6 inch Deep - 19" Patch Panel Swing Rack for Shallow Network Equipment- 33lbs, Wall mounted rack, 4U, 15 kg, 2.2 kg, Black
Wall mount a patch panel or network switch while providing hinged access to the back of the device(s)
The WALLMOUNTH4 4U 19in Hinged Wall Mounting Bracket for Patch Panels is 6in deep and sturdily designed to provide a dependable solution for mounting a patch panel, or other slim 19in networking equipment to a wall.

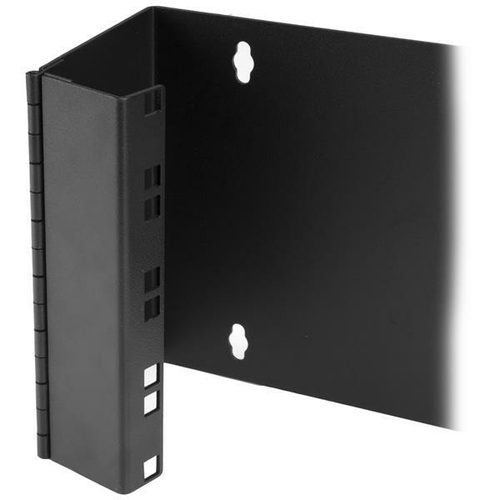

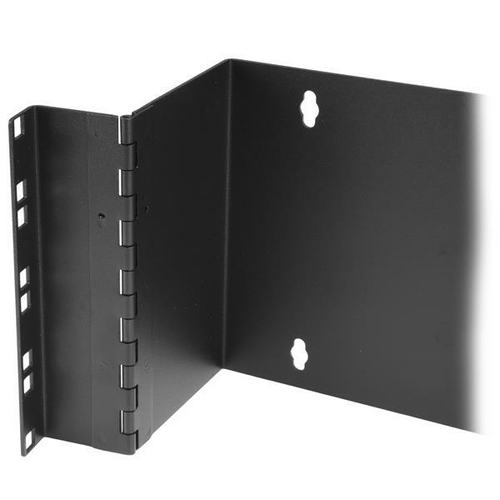

The patch panel wall mount features a hinged design for easy access to configuration buttons, ports and cables. The wall mounting holes are spaced 16 in. apart, making it suitable for mounting on almost any wall, based on common wall-frame stud spacing.
Backed by a StarTech.com 2-year warranty.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | WALLMOUNTH4 |
| Our part no. | V931250 |
| EAN | 0065030783521 |
| Category | Cables & Adapters › Cable Management |
| Weight | 3.6 kg |
| Features | |
| Rack capacity | 4U |
| Type | Wall mounted rack |
| Maximum weight capacity | 15 kg |
| Product colour | Black |
| Material | Steel |
| Frame type | Open |
| Product design | 2-post |
| Number of fans | 0 fan(s) |
| Cable management | No |
| Mounting hole shape | Square |
| Castor wheels | No |
| Certification | RoHS |
| Weight & dimensions | |
| Width | 501 mm |
| Depth | 152 mm |
| Height | 179 mm |
| Weight | 2.2 kg |
| Mounting depth (max) | 14.8 cm |
| Packaging data | |
| Nuts included | Yes |
| Number of nuts | 8 |
| Screws included | Yes |
| Number of screws | 12 |
| Number of washers included | 4 |
| Package width | 528 mm |
| Package depth | 190 mm |
| Package height | 226 mm |
| Package weight | 2.7 kg |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85381000 |
| Master (outer) case width | 222 mm |
| Master (outer) case length | 520 mm |
| Master (outer) case height | 188 mm |
| Products per master (outer) case | 1 pc(s) |
| Other features | |
| Compliance industry standards | EIA/ECA-310-E |
