Description
StarTech.com 2U Sliding Server Rack Mount Shelf - 20 to 30in Adjustable Mounting Depth - Vented - 50lb - Heavy Duty Universal 19” Rack Shelf for Equipment Rack - 24in Deep, Adjustable shelf, Steel, Black, 6.4 kg
Increase peripheral and equipment accessibility with this vented sliding cabinet shelf

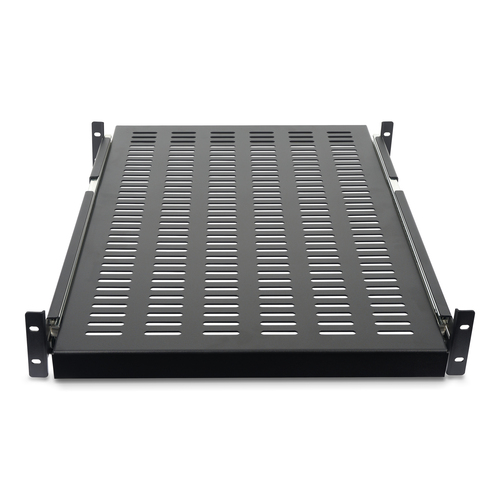

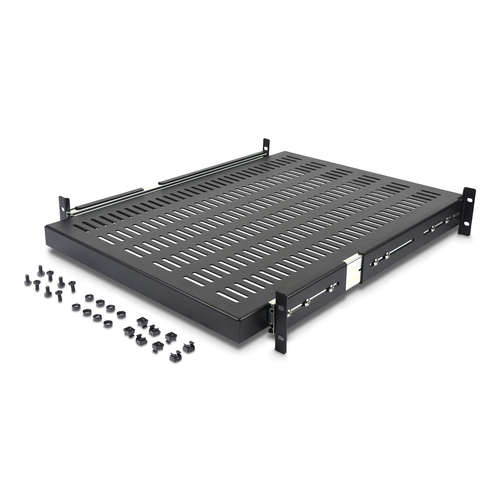

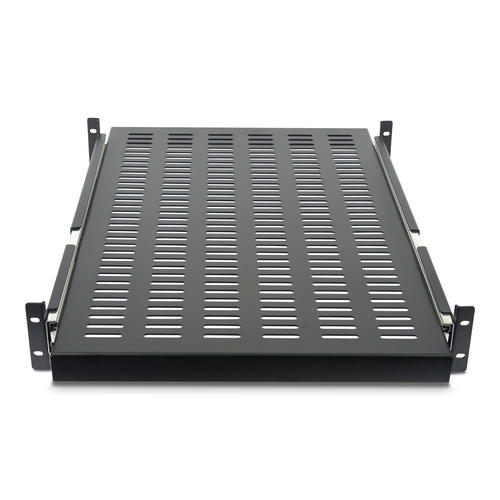

The UNISLDSHF19 19in Vented Adjustable Mounting Depth Sliding Server Rack Cabinet Shelf offers a simple way to install non rack mountable equipment into a server cabinet or open server rack.
Offering a weight capacity of up to 50 lbs (22.7 kg), the sliding rack shelf features a ventilated, cold-rolled steel shelf on two locking adjustable rails which allow the shelf to be installed into cabinets or racks with mounting depths from 20in (510mm) to 30in (744mm). The locking feature locks the shelf 3/4 of the way out, preventing the shelf from accidentally falling out of the rack or sliding back in before maintenance is complete.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | UNISLDSHF19 |
| Our part no. | V931291 |
| EAN | 0065030837859 |
| Category | Docks, Bags & Racks › Racks & Cabinets |
| Weight | 8.4 kg |
| Features | |
| Type | Adjustable shelf |
| Product colour | Black |
| Housing material | Steel |
| Maximum weight capacity | 22.7 kg |
| Rack capacity | 2U |
| Compliance industry standards | EIA RS310-C |
| Weight & dimensions | |
| Width | 452 mm |
| Depth | 610 mm |
| Height | 45 mm |
| Mounting depth (min) | 51 cm |
| Mounting depth (max) | 74.4 cm |
| Weight | 6.4 kg |
| Packaging data | |
| Package width | 701 mm |
| Package depth | 548 mm |
| Package height | 176 mm |
| Package weight | 8.4 kg |
| Packaging content | |
| Screws included | Yes |
| Screw type | M6 |
| Number of screws | 8 |
| Cage nuts included | Yes |
| Number of cage nuts | 8 |
| Technical details | |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Master (outer) case width | 718 mm |
| Master (outer) case length | 715 mm |
| Master (outer) case height | 585 mm |
| Products per master (outer) case | 4 pc(s) |
| Harmonized System (HS) code | 85389099 |
