Description

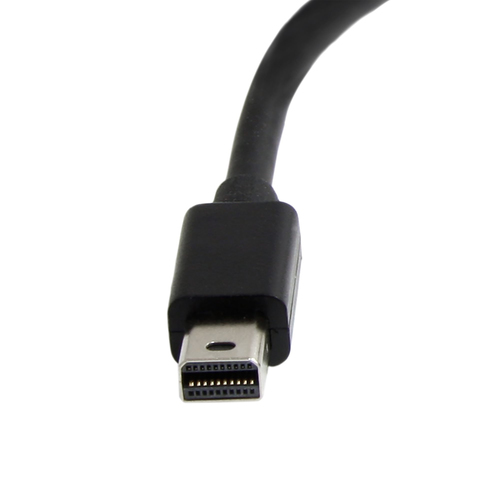

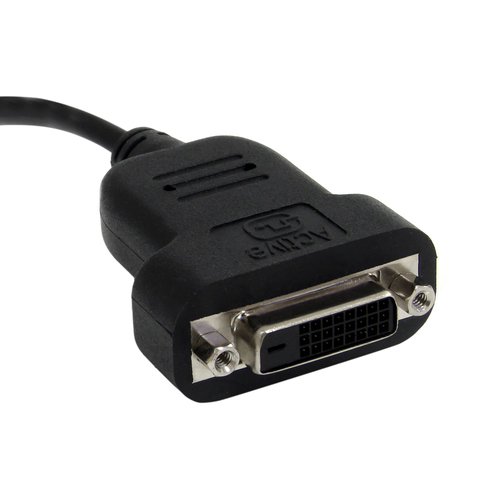

StarTech.com Mini DisplayPort to DVI Adapter - Active Mini DisplayPort to DVI-D Adapter Converter - 1080p Video - mDP or Thunderbolt 1/2 Mac/PC to DVI Monitor Dongle, mDP to DVI Single-Link, 0.12 m, Mini DisplayPort, DVI-D, Male, Female, Straight

Connect a DVI monitor to a single-mode DisplayPort output from your computer

The MDP2DVIS Mini DisplayPort to DVI Active Adapter (single-link) let's you connect your Mini DisplayPort video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI-D display, including televisions and Apple Cinema Display HD, eliminating the expense of having to upgrade to a DisplayPort capable monitor.

Unlike passive video adapters, this Mini DisplayPort to DVI adapter offers an active conversion for use with any Mini DisplayPort output - ideal for graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity).

Supporting resolutions up to 1920x1200, this compact device provides a simple solution for adapting PC or Mac® Mini-DisplayPort output for DVI monitors, televisions or projectors.

The Mini DP to DVI adapter is compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

Specifications

BrandSTARTECH
Manufacturer part no.MDP2DVIS
Our part no.V931319
EAN0065030842334
CategoryCables & Adapters › VGA & Video Adapters
Weight0 kg
Features
Connector 1 form factorStraight
Connector 2 form factorStraight
Cable length0.12 m
Connector 1Mini DisplayPort
Connector 2DVI-D
Connector 1 genderMale
Connector 2 genderFemale
HDCPYes
HDCP version1.3
DisplayPort version1.2
Dual Link DVINo
Maximum resolution1920 x 1200 pixels
Maximum refresh rate60 Hz
Product colourBlack
Jacket materialLow smoke zero halogen (LSZH)
Plug and PlayYes
Converter typeActive video converter
Operational conditions
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)0 - 70 °C
Certificates
Compliance certificatesCE, RoHS
Weight & dimensions
Weight38 g
Width44 mm
Depth200 mm
Height20 mm
Packaging data
Package width54 mm
Package depth201 mm
Package height28 mm
Package weight47 g
Packaging content
Quantity per pack1 pc(s)
Logistics data
Harmonized System (HS) code84733080
Master (outer) case width505 mm
Master (outer) case length338 mm
Master (outer) case height227 mm
Products per master (outer) case150 pc(s)
