Description

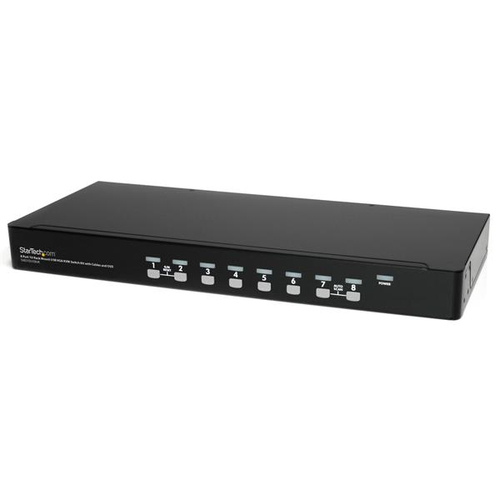

StarTech.com 8 Port 1U Rackmount USB KVM Switch Kit with OSD and Cables - TAA, 1920 x 1440 pixels, Rack mounting, 12 W, 1U, Black

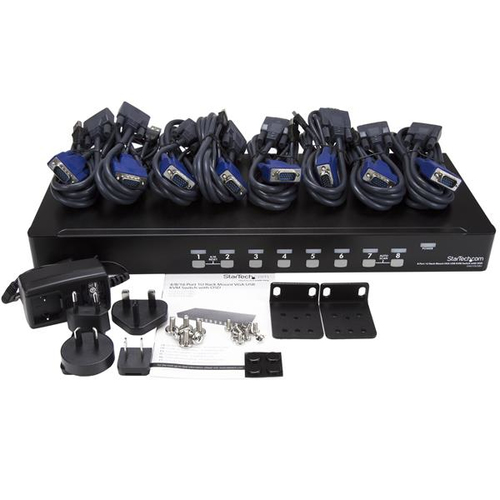

A complete 8-port USB KVM kit, including all necessary cables and accessories
The SV831DUSBUK 8-Port Rack Mount USB KVM Switch Kit offers a well-appointed KVM switch that includes all of the cables and accessories required to connect to 8 servers or PCs right out of the box, making setup convenient and simple. The USB KVM delivers a dependable computer management tool that allows you to control up to 8 USB-connected computers from a single keyboard, mouse and display, providing maximum control through hotkey command-based switching or front panel push-buttons, with the added configurability and convenience of an On-Screen Display. A suitable addition to server room operations, the 8-port switch can be rackmounted into 1U of cabinet space and can be cascaded with multiple KVM switches to enable control of up to 64 computers from this single switch. This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | SV831DUSBUK |
| Our part no. | V931446 |
| EAN | 0065030843331 |
| Category | Networking › KVM & Extenders |
| Weight | 4.9 kg |
| Ports & interfaces | |
| Number of computers controlled | 8 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 9 |
| Console ports | USB A, VGA (D-Sub) |
| Console USB ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| USB connector type | USB Type-A |
| DC-in jack | Yes |
| Performance | |
| Maximum resolution | 1920 x 1440 pixels |
| Maximum analog resolution | 1920 x 1440 pixels |
| Plug and Play | Yes |
| Daisy chain | Yes |
| Design | |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Steel |
| Cascadable | Yes |
| LED indicators | Power |
| Hot keys | Yes |
| Certification | CE, FCC, TAA, REACH |
| Display | |
| On Screen Display (OSD) | Yes |
| Power | |
| Input voltage | 100 - 240 V |
| Output voltage | 12 V |
| Output current | 1 A |
| Power consumption (typical) | 12 W |
| External power adapter | Yes |
| Compatible power plug types | AU, EU, UK, US |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 435 mm |
| Depth | 180 mm |
| Height | 45 mm |
| Weight | 2.2 kg |
| Packaging data | |
| Package width | 594 mm |
| Package depth | 265 mm |
| Package height | 124 mm |
| Package weight | 4.7 kg |
| Packaging content | |
| Cables included | KVM |
| Manual | Yes |
| AC adapter included | Yes |
| Rack mount kit | Yes |
| Other features | |
| Audio support | No |
| IP control | No |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 614 mm |
| Master (outer) case length | 290 mm |
| Master (outer) case height | 413 mm |
| Products per master (outer) case | 3 pc(s) |
