Description
StarTech.com 2-port HDMI splitter and signal amplifier - TAA, HDMI, 2x HDMI, 1920 x 1200 pixels, Black, Steel, 15 m
Split an HDMI® audio and video signal to two displays simultaneously
The ST122HDMI2 2-Port High Speed HDMI® Splitter and Signal Amplifier lets you share a single HDMI source signal with audio between two HDMI or DVI (using HDMI to DVI adapter - see Accessories) enabled displays simultaneously.
Supporting True HD 1080p video resolutions, the HDMI splitter acts as a distribution amplifier that enables you to situate your HDMI-capable displays up to 50ft (15m) away from the splitter, and features 3.5mm audio connections, giving you the option of sending your accompanying audio signal through the HDMI cable, or through a separate channel.
The HDMI splitter is easy to install and use with no software or configuration required, for a completely plug-and-play setup that can be used with HDMI output devices such as Blu-ray players or desktop/laptop computers.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | ST122HDMI2 |
| Our part no. | V931466 |
| EAN | 0065030842457 |
| Category | Cables & Adapters › HDMI Cables & Extenders |
| Weight | 0.7 kg |
| Ports & interfaces | |
| Video port type | HDMI |

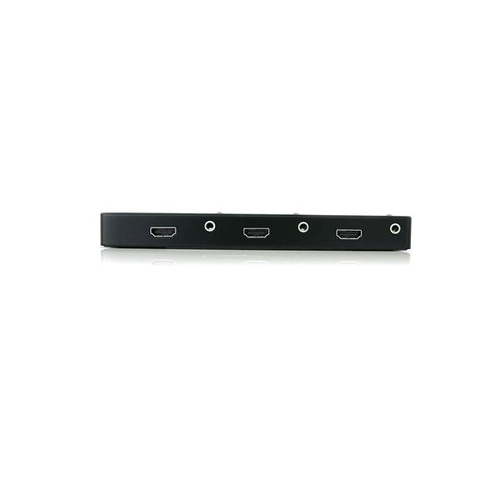

| Video out | 2x HDMI |
| Video ports quantity | 2 |
| Audio ports quantity | 2 |
| Features | |
| Product colour | Black |
| Housing material | Steel |
| Maximum resolution | 1920 x 1200 pixels |
| Maximum operating distance | 15 m |
| LED indicators | Yes |
| Certification | CE, FCC, TAA, REACH |
| Power | |
| AC input voltage | 100 - 240 V |
| Input current | 0.6 A |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Power consumption (typical) | 13 W |
| Weight & dimensions | |
| Width | 80 mm |
| Depth | 180 mm |
| Height | 20 mm |
| Weight | 380 g |
| Packaging data | |
| Package width | 102 mm |
| Package depth | 220 mm |
| Package height | 94 mm |
| Package weight | 716 g |
| Packaging content | |
| Manual | Yes |

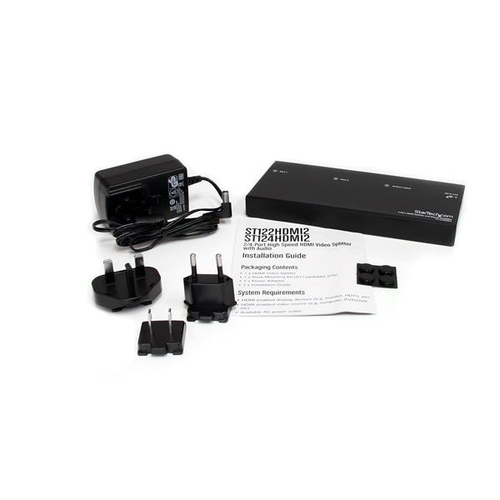

| AC adapter included | Yes |
| Included power plug types | AU, EU, NA, UK |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 352 mm |
| Master (outer) case length | 384 mm |
| Master (outer) case height | 332 mm |
| Products per master (outer) case | 12 pc(s) |
