Description

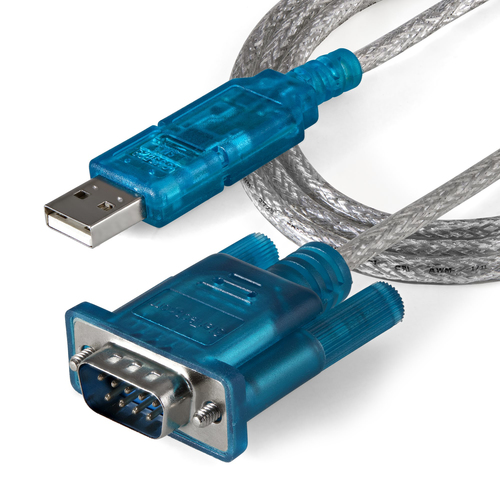

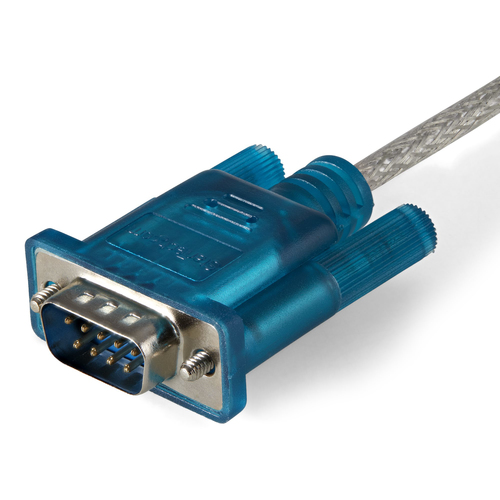

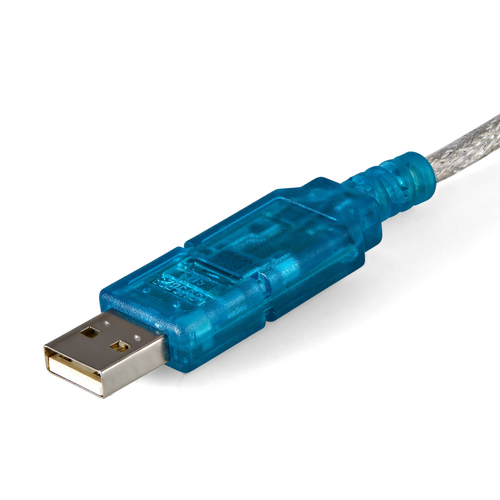

StarTech.com 3ft (91cm) 1-Port USB to RS232 DB9 Serial Adapter Cable, USB to Serial Adapter Cable - M/M, DB-9, USB 2.0 A, 0.9 m, Blue, Transparent
Add an RS232 serial port to your laptop or desktop computer through USB
The ICUSB232SM3 3ft USB to Serial Adapter Cable lets you connect DB9 RS232 serial devices to your Mac® or PC laptop or desktop computer through an available USB port, as though the computer offered an onboard DB9M connector. Unlike typical USB to serial converter cables where the conversion takes place at the DB9 end, the StarTech.com ICUSB232SM3 features a converter chip on the USB end. Converting at the USB source overcomes the 15ft. technical limit of USB cables, allowing for a much greater serial DB-9 extension cable (50ft.+ is possible depending on the application) if necessary. Simple to install and use, this USB to Serial adapter is a cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals. Backed by a StarTech.com lifetime warranty and free lifetime technical support.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | ICUSB232SM3 |
| Our part no. | V931527 |
| EAN | 0065030842440 |
| Category | Cables & Adapters › Other (1204) |
| Weight | 0 kg |
| Ports & interfaces | |
| Connector 1 | DB-9 |
| Connector 2 | USB 2.0 A |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Cable length | 0.9 m |
| Performance | |
| Product colour | Blue, Transparent |
| Housing material | Plastic |
| Chipset | Prolific - PL2303HXD |
| Baud rate | 921.6 Kbit/s |
| FIFO (First In, First Out) | 192 B |
| Compatible operating systems | Windows 98SE/ ME/ 2000/ XP(32/64bit)/ Vista(32/64bit)/ 7(32/64bit)/ Server 2008 R2, MAC X, Linux |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Relative humidity | 0 - 65% |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, FCC |
| Weight & dimensions | |
| Width | 35 mm |
| Depth | 914 mm |
| Height | 15 mm |
| Weight | 56 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 201 mm |
| Package depth | 110 mm |
| Package height | 33 mm |
| Package weight | 70 g |
| Logistics data | |
| Products per master (outer) case | 100 pc(s) |
| Master (outer) case width | 583 mm |
| Master (outer) case length | 367 mm |
| Master (outer) case height | 303 mm |
