Description

StarTech.com 2m Fiber Optic Cable - Multimode Duplex 62.5/125 LSZH Fiber Jumper Cord - LC/SC, 2 m, OM1, LC, SC

Connect fiber network devices for high-speed transfers with LSZH rated cable

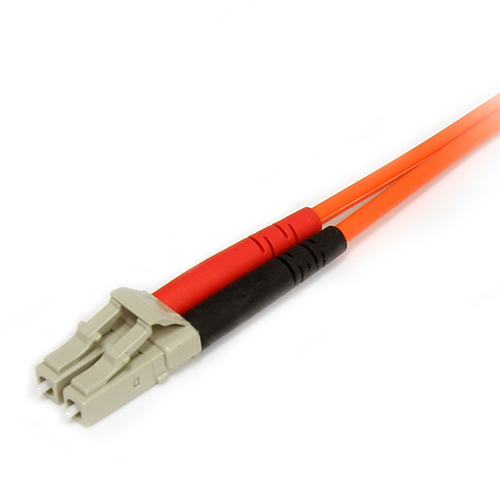

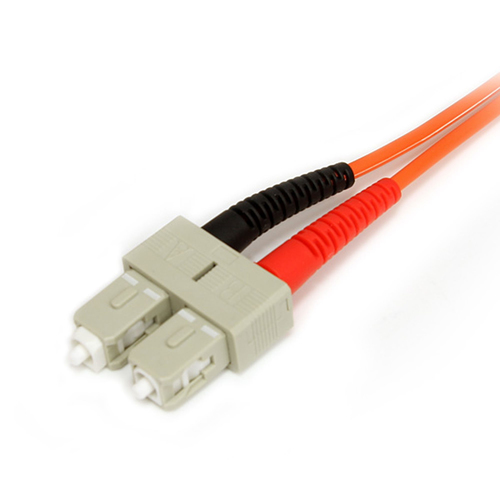

The FIBLCSC2 2-meter (6.6ft) Multimode 62.5/125 Duplex Fiber Patch Cable is terminated with one LC (male) connector and one SC (male) connector, to provide the necessary connection between fiber networking devices for high-speed, long distance networks.

This LC-SC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. Making it ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.

To ensure optimum performance, our multimode fiber duplex cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.

Backed by Lifetime Warranty, our LC-SC Multimode Fiber Patch cable is guaranteed to provide long-lasting dependability, and top quality performance.

Specifications

BrandSTARTECH
Manufacturer part no.FIBLCSC2
Our part no.V931574
EAN0065030797771
CategoryCables & Adapters › Specialist Cables
Weight0 kg
Features
Cable length2 m
Fibre optic typeOM1
Connector 1LC
Connector 2SC
Connector 1 genderMale
Connector 2 genderMale
Product colourOrange
Full duplexYes
Core diameter62.5 µm
Cladding diameter125 µm
Fiber mode structureMulti-mode
Data transfer rate10 Gbit/s
Jacket materialLow smoke zero halogen (LSZH)
Certificates
Compliance certificatesRoHS, CE
Operational conditions
Operating temperature (T-T)-20 - 60 °C
Storage temperature (T-T)-20 - 60 °C
Weight & dimensions
Weight39 g
Packaging data
Package width197 mm
Package depth160 mm
Package height27 mm
Package weight48 g
Logistics data
Master (outer) case width409 mm
Harmonized System (HS) code85447000
Master (outer) case length410 mm
Master (outer) case height415 mm
Products per master (outer) case240 pc(s)
