Description

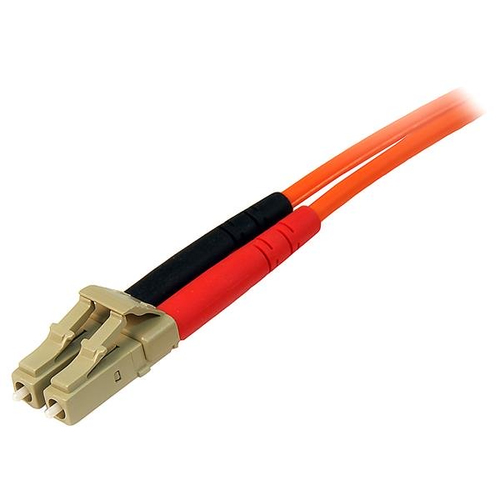

StarTech.com 3m Fiber Optic Cable - Multimode Duplex 50/125 - LSZH Fiber Jumper Cord - LC/LC, 3 m, OM2, LC, LC

Connect fiber network devices for high-speed transfers with LSZH rated cable

The 50FIBLCLC3 3m LSZH LC to LC Fiber Cable features 50/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex multimode applications.

This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. Making it ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.

Each Duplex 50/125 (OM2) Multimode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability and is backed by our lifetime warranty.

Specifications

BrandSTARTECH
Manufacturer part no.50FIBLCLC3
Our part no.V931657
EAN0065030802888
CategoryCables & Adapters › Specialist Cables
Weight0 kg
Features
Cable length3 m
Fibre optic typeOM2
Connector 1LC
Connector 2LC
Connector 1 genderMale
Connector 2 genderMale
Product colourOrange
Full duplexYes
Core diameter50 µm
Cladding diameter125 µm
Fiber mode structureMulti-mode
Data transfer rate10 Gbit/s
Jacket materialLow smoke zero halogen (LSZH)
Sustainability
Doesn't containHalogen
Certificates
Compliance certificatesREACH, RoHS
CertificationCE
Operational conditions
Operating temperature (T-T)-20 - 60 °C
Storage temperature (T-T)-20 - 60 °C
Weight & dimensions
Weight40 g
Packaging data
Package width198 mm
Package depth157 mm
Package height18 mm
Logistics data
Master (outer) case width345 mm
Harmonized System (HS) code85447000
Master (outer) case length245 mm
Master (outer) case height245 mm
Products per master (outer) case200 pc(s)
