Description

StarTech.com 3m Fiber Optic Cable - Multimode Duplex 62.5/125 LSZH Fiber Jumper Cord - LC/ST, 3 m, OM1, LC, ST

Connect fiber network devices for high-speed transfers with LSZH rated cable

The FIBLCST3 3-meter (10ft) Multimode 62.5/125 Duplex Fiber Patch Cable is terminated with one LC (male) connector and one ST (male) connector, to provide the necessary connection between fiber networking devices for high-speed, long distance networks.

This LC-ST patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. Making it ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.

To ensure optimum performance, our multimode fiber duplex cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.

Backed by Lifetime Warranty, our LC-ST Multimode Fiber Patch cable is guaranteed to provide long-lasting dependability, and top quality performance.

Specifications

BrandSTARTECH
Manufacturer part no.FIBLCST3
Our part no.V931670
EAN0065030797719
CategoryCables & Adapters › Specialist Cables
Weight0 kg
Features
Cable length3 m
Fibre optic typeOM1

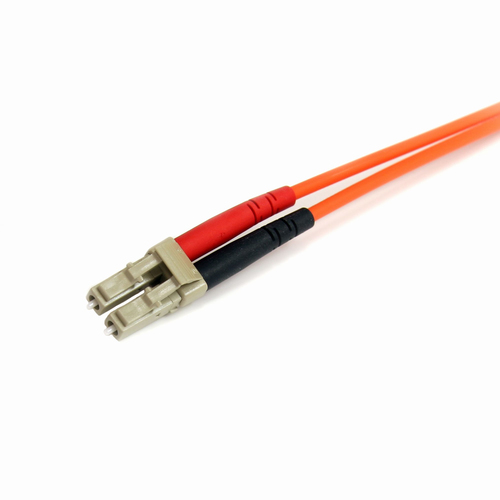

Connector 1LC

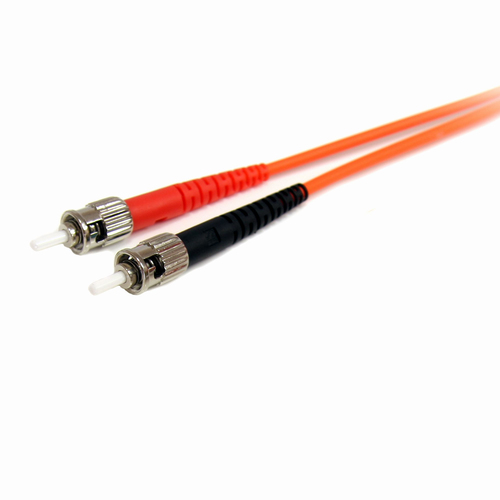

Connector 2ST
Connector 1 genderMale
Connector 2 genderMale
Product colourOrange
Full duplexYes
Core diameter62.5 µm
Cladding diameter125 µm
Fiber mode structureMulti-mode
Data transfer rate10 Gbit/s
Jacket materialLow smoke zero halogen (LSZH)
Certificates
Compliance certificatesRoHS, CE
Operational conditions
Operating temperature (T-T)-20 - 60 °C
Storage temperature (T-T)-20 - 60 °C
Weight & dimensions
Weight52 g
Packaging data
Package width168 mm
Package depth174 mm
Package height30 mm
Package weight61 g
Packaging content
Quantity per pack1 pc(s)
Logistics data
Master (outer) case width406 mm
Harmonized System (HS) code85447000
Master (outer) case length410 mm
Master (outer) case height438 mm
Products per master (outer) case200 pc(s)
