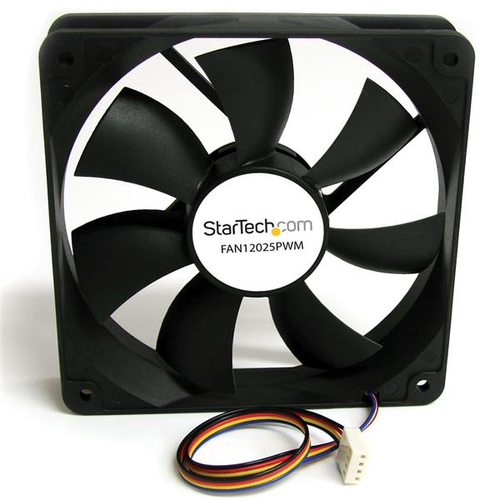

StarTech.com 120x25mm Computer Case Fan with PWM – Pulse Width Modulation Connector, Fan, 12 cm, Black
Add a Variable Speed, PWM-controlled Cooling Fan to your Computer Case
The FAN12025PWM 120mm PWM Case Fan adds an efficient air cooling solution to computer cases or other enclosures to help ensure optimal performance from internal components. With Pulse Width Modulation (PWM) technology, the fan speed can be dynamically controlled by the motherboard, so the fan runs at a speed that suits the operating conditions - lowering power consumption and fan noise when the system is idle, and delivering maximum cooling under full load conditions. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | FAN12025PWM |
| Our part no. | V931696 |
| EAN | 0065030845335 |
| Category | Computers & Servers › Fans & Cooling |
| Weight | 0.1 kg |
| Performance | |
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 12 cm |
| Noise level (high speed) | 39 dB |
| Mean time between failures (MTBF) | 40000 h |
| Operating temperature (T-T) | -10 - 70 °C |
| Design | |
| Product colour | Black |
| Material | Plastic |
| Power | |
| Voltage | 12 V |
| Rated current | 0.32 A |
| Weight & dimensions | |
| Weight | 128 g |
| Package width | 145 mm |
| Package depth | 208 mm |
| Package height | 34 mm |
| Package weight | 188 g |
| Other features | |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 65% |
| Fan performance | 78.41 cfm |
| Dimensions (WxDxH) | 120 x 120 x 25 mm |
| Connector(s) | 1 - Molex Fan (4 pin; PWM) |
| Rotational speed | 220 RPM |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 528 mm |
| Master (outer) case length | 378 mm |
| Master (outer) case height | 324 mm |
| Products per master (outer) case | 60 pc(s) |
