Description

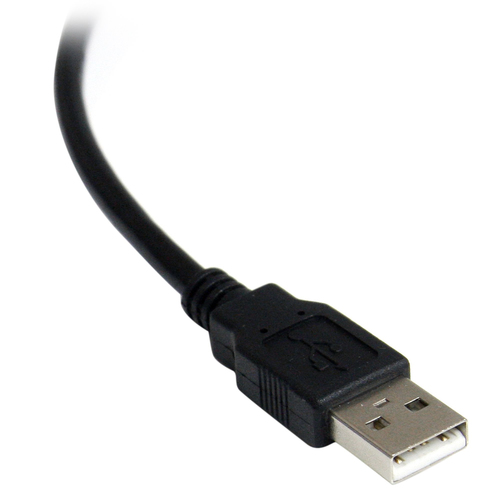

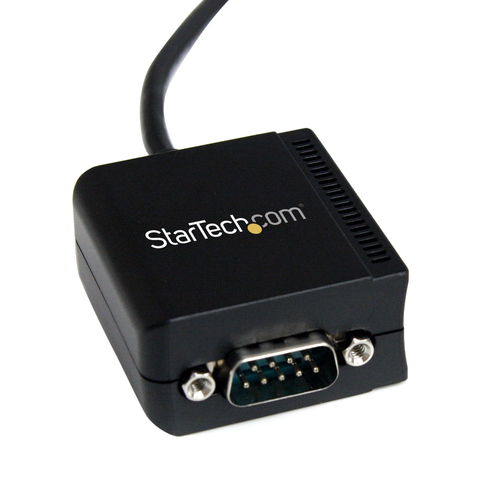

StarTech.com 8.3ft (2.5m) 1-Port FTDI USB to Serial RS232 Adapter Cable with Optical Isolation, USB to RS232 Adapter - TAA, DB-9, USB A, 2.5 m, Black

Add an RS232 serial port with circuit isolation to your laptop or desktop computer, through USB

The ICUSB2321FIS 1-Port FTDI USB to Serial RS232 Adapter Cable with Optical Isolation converts an available USB 1.1 or 2.0 port into an RS232 DB9 port that can be used to connect, monitor and control your serial devices. The USB to serial adapter features integrated optical isolation circuits and surge protection to protect your critical, sensitive control equipment against electrical damage, making it a viable solution for costly industrial serial devices. The versatile FTDI chipset also supports COM retention, additional customization/features, and compatibility not offered by most other solutions. Broad operating system compatibility including Windows®, Windows CE, Mac OS and Linux, makes this product easy to integrate into mixed environments. Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

BrandSTARTECH
Manufacturer part no.ICUSB2321FIS
Our part no.V931722
EAN0065030845373
CategoryCables & Adapters › USB Cables & Adapters
Weight0.2 kg
Ports & interfaces
Connector 1DB-9
Connector 2USB A
Connector 1 genderMale
Connector 2 genderMale
Cable length2.5 m
Performance
Product colourBlack
Housing materialPlastic
USB requiredYes
ChipsetFTDI - FT232RL
Data bits7, 8
Stop bits1, 2
Baud rate921.6 Kbit/s
Parity bitEven, Mark, No, Odd, Space
Isolation2500 kV
FIFO (First In, First Out)256 B
Compatible operating systemsWindows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11 Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 macOS 10.6 to 10.15, 11.0, 12.0, 13.0 Linux Kernel 3.0.x+
Operational conditions
Operating temperature (T-T)0 - 55 °C
Storage temperature (T-T)-20 - 85 °C
Relative humidity5 - 95%
Certificates
Compliance certificatesCE, RoHS
CertificationCE, FCC, Microsoft WHQL
Sustainability
Sustainability complianceYes
Weight & dimensions
Width40 mm
Depth2400 mm
Height20 mm
Weight86 g

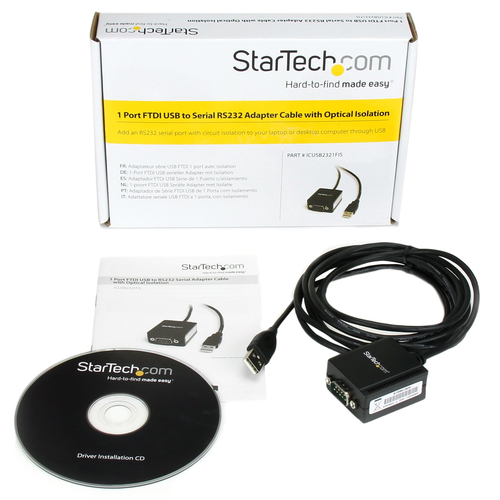

Packaging content
ManualYes
Drivers includedYes
Packaging data
Package width145 mm
Package depth212 mm
Package height41 mm
Package weight222 g
Logistics data
Products per master (outer) case50 pc(s)
Master (outer) case width448 mm
Master (outer) case length530 mm
Master (outer) case height126 mm
Other features
Gross weight (imperial)0.2 kg (0.44 lbs)
