Description

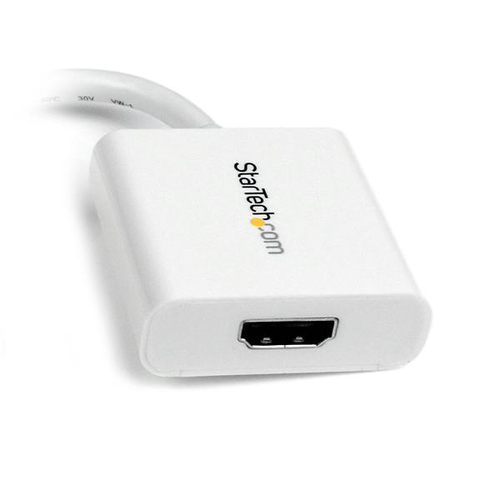

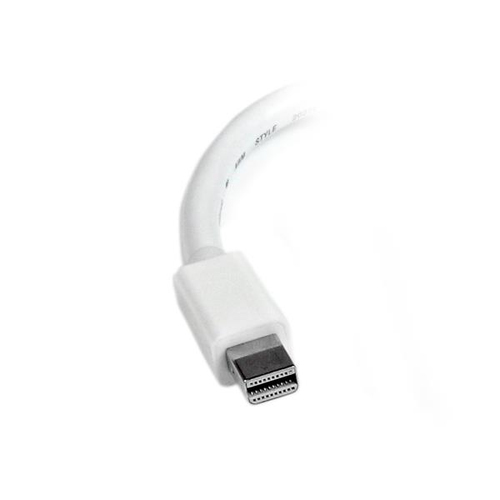

StarTech.com Mini DisplayPort to HDMI Adapter - mDP to HDMI Video Converter - 1080p - Mini DP or Thunderbolt 1/2 Mac/PC to HDMI Monitor/Display/TV - Passive mDP 1.2 to HDMI Dongle - White, 0.12 m, Mini-DisplayPort, HDMI, Male, Female, Straight
Connect an HDMI®-capable display to a Mini-DisplayPort®-equipped PC or Mac® computer
The MDP2HDW passive Mini DisplayPort® to HDMI® Video Adapter/Converter (White) offers a convenient HDMI/Mini-DisplayPort link, which enables you to connect an HDMI computer monitor or television to a device with a Mini-DisplayPort output (such as any Microsoft® Surface™ Pro with mDP), while saving the expense of upgrading the monitor for compatibility.
The adapter supports high resolution output up to 1920x1200, offering a high quality solution for mirroring or extending a computer desktop onto a second display.
This versatile Mini DisplayPort to HDMI adapter requires a multimode DisplayPort port (DisplayPort ++) connection to function, and is compatible with Intel® Thunderbolt™ output when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port.
This adapter allows for audio pass-through if supported by the video source. Please review the video source manual to confirm support.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | MDP2HDW |
| Our part no. | V931873 |
| EAN | 0065030845960 |
| Category | Cables & Adapters › VGA & Video Adapters |
| Weight | 0 kg |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable length | 0.12 m |
| Connector 1 | Mini-DisplayPort |
| Connector 2 | HDMI |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| HDMI version | 1.4 |
| HDCP | Yes |
| HDCP version | 1.4 |
| DisplayPort version | 1.2 |
| DisplayPort Content Protection (DPCP) | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| Supported video modes | 1080p |
| Product colour | White |
| Chipset | NXP - PTN3361 |
| Supported audio channels | 7.1 |
| Plug and Play | Yes |
| Converter type | Passive video converter |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 40 - 85% |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
| Weight | 24 g |
| Width | 40 mm |
| Depth | 170 mm |
| Height | 15 mm |
| Packaging data | |
| Package width | 72 mm |
| Package depth | 196 mm |
| Package height | 32 mm |
| Package weight | 50 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 355 mm |
| Master (outer) case length | 455 mm |
| Master (outer) case height | 270 mm |
| Products per master (outer) case | 200 pc(s) |
| Other features | |
| Material | Plastic |
