Description
StarTech.com Cisco GLC-LH-SMD Compatible SFP Module - 1000BASE-LH - 1GbE Single Mode Fiber SMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 20km - 1310nm - DDM Cisco Firepower, IE2000, IE4000, Fiber optic, 1250 Mbit/s, SFP, LC, LH, 20000 m
1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 20 km (12.4 mi) | Lifetime Warranty

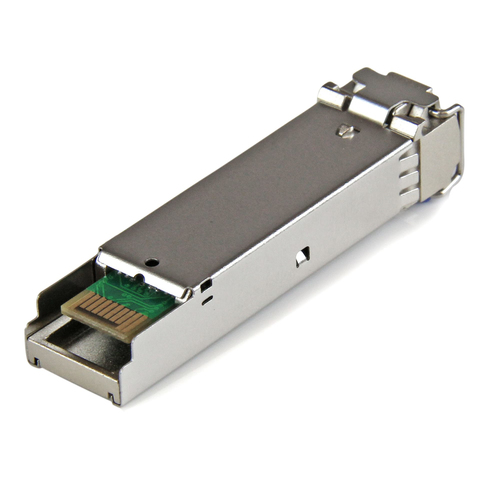

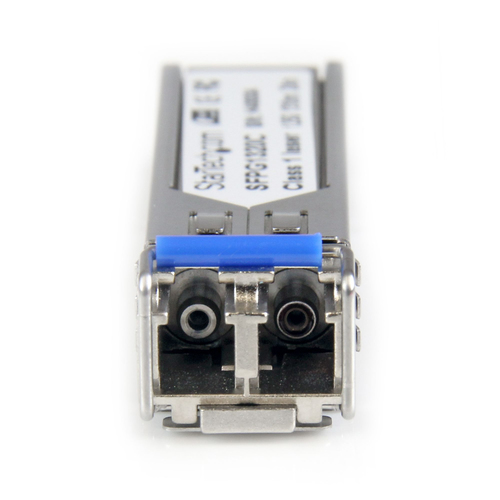

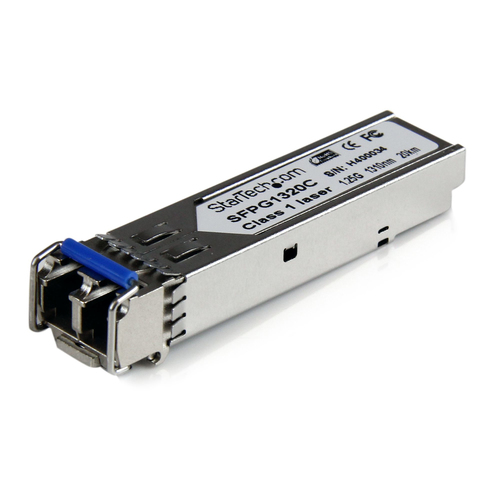

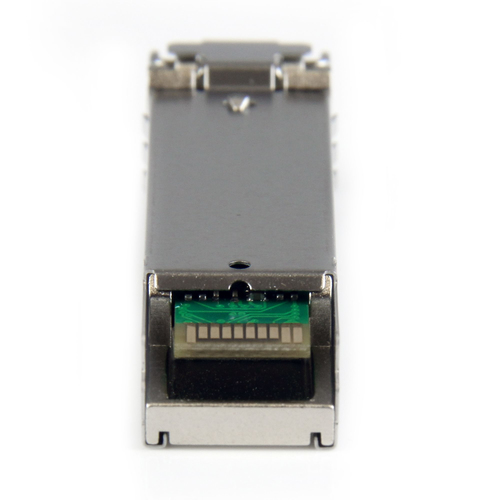

The SFPG1320C is a Cisco GLC-LH-SMD compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-LH compliant networks, with a maximum distance of up to 20 km (12.4 mi).
Technical Specifications:
• Wavelength: 1310nm • Maximum Data Transfer Rate: 1.25 Gbps • Type: Single Mode Fiber • Connection Type: LC Connector • Maximum Transfer Distance: 20 km (12.4 mi) • MTBF: 2,722,277 hours • Power Consumption: Less than 1 Watt • Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | SFPG1320C |
| Our part no. | V931914 |
| EAN | 0065030846677 |
| Category | Networking › Transceivers & SFPs |
| Weight | 0 kg |
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC |
| SFP transceiver standard | LH |
| Maximum transfer distance | 20000 m |
| Wavelength | 1310 nm |
| Networking standards | IEEE 802.3z |
| Duplex system | Full, Half |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Wavelength-division multiplexing (WDM) | No |
| Features | |
| Product colour | Silver |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 2722277 h |
| Brand compatibility | Cisco |
| Compatible products | GLC-LH-SMD |
| Power | |
| Power consumption (typical) | 1 W |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, FCC, UL, REACH |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 30 - 70% |
| Weight & dimensions | |
| Width | 12 mm |
| Depth | 60 mm |
| Height | 10 mm |
| Weight | 20 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 91 mm |
| Package depth | 113 mm |
| Package height | 33 mm |
| Package weight | 48 g |
| Logistics data | |
| Master (outer) case width | 254 mm |
| Master (outer) case length | 302 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 201 mm |
| Products per master (outer) case | 36 pc(s) |
