Description
StarTech.com 6in SATA Power to 6 Pin PCI Express Video Card Power Cable Adapter, SATA 15-pin, PCI-E (6-pin), 0.15 m, Male, Male, Straight
Convert two 15-pin SATA power supply connectors to a 6-pin PCI Express video card power connector

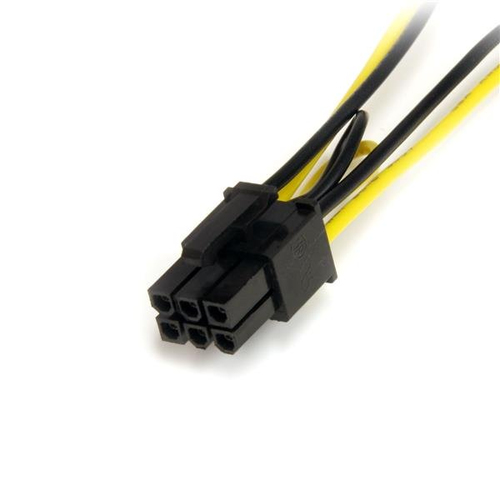

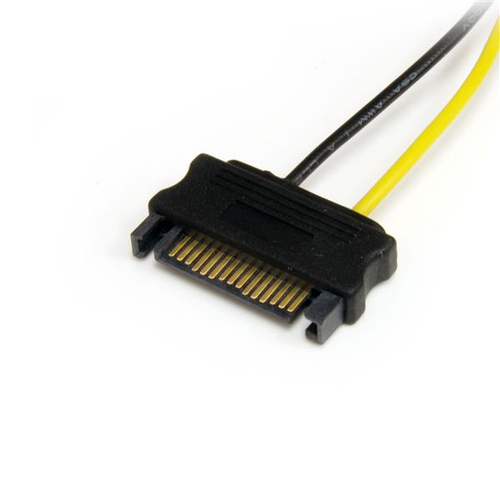

The SATPCIEXADAP SATA to PCI Express Video Card Power Adapter Cable features a 6-pin PCI Express (male) power connector as well as two 15-pin SATA (male) power connectors, providing a cost-effective way to connect a PCIe video card to Serial ATA power connectors provided by the computer power supply, and eliminating the need to upgrade the power supply for the sake of video card compatibility.
NOTE: When powering a graphics card, we recommend using two separate power supply cables, each with a SATA power connector.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | SATPCIEXADAP |
| Our part no. | V931921 |
| EAN | 0065030846639 |
| Category | Cables & Adapters › Patch Cables & Power |
| Weight | 0 kg |
| Features | |
| Cable length | 0.15 m |
| Connector 1 | SATA 15-pin |
| Connector 2 | PCI-E (6-pin) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| Product colour | Black, Yellow |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, REACH |
| Weight & dimensions | |
| Width | 31.2 mm |
| Depth | 152.4 mm |
| Height | 20 mm |
| Weight | 15 g |
| Packaging data | |
| Package width | 128 mm |
| Package depth | 114 mm |
| Package height | 21 mm |
| Package weight | 23 g |
| Other features | |
| Jacket material | Polyvinyl chloride (PVC) |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 308 mm |
| Master (outer) case length | 470 mm |
| Master (outer) case height | 312 mm |
| Products per master (outer) case | 600 pc(s) |
