Description

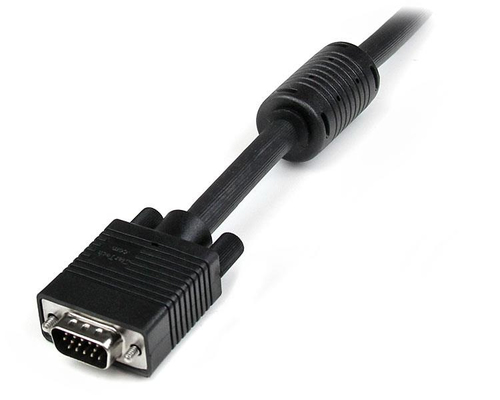

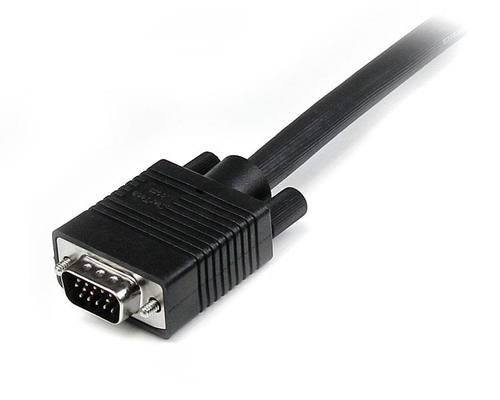

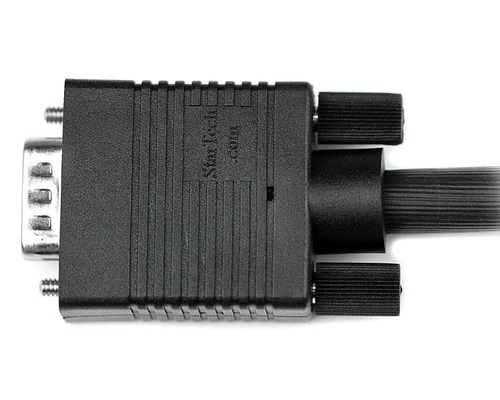

StarTech.com 3m Coax High Resolution Monitor VGA Video Cable - HD15 to HD15 M/M, 3 m, VGA (D-Sub), VGA (D-Sub), Male, Male, Black
Connect your VGA monitor with the highest quality connection available
The MXTMMHQ3M High Resolution VGA Cable (3-meter) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above. This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | MXTMMHQ3M |
| Our part no. | V931941 |
| EAN | 0065030847711 |
| Category | Cables & Adapters › Display Cables |
| Weight | 0.3 kg |
| Features | |
| Cable length | 3 m |
| Connector 1 | VGA (D-Sub) |
| Connector 2 | VGA (D-Sub) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black |
| AWG wire size | 28 |
| Connector contacts plating | Nickel |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Ferrite bead | Yes |
| Plug and Play | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | RoHS |
| Weight & dimensions | |
| Weight | 400 g |
| Packaging data | |
| Package width | 133 mm |
| Package depth | 338 mm |
| Package height | 49 mm |
| Package weight | 384 g |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 364 mm |
| Master (outer) case length | 450 mm |
| Master (outer) case height | 272 mm |
| Products per master (outer) case | 50 pc(s) |
