Description
StarTech.com 2m Coax High Resolution Monitor VGA Video Cable - HD15 to HD15 M/M, 2 m, VGA (D-Sub), VGA (D-Sub), Male, Male, Black
Connect your VGA monitor with the highest quality connection available

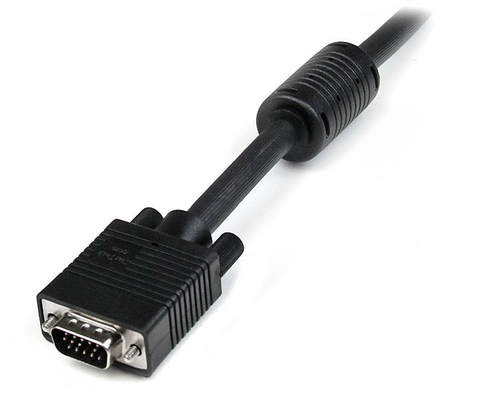

The MXTMMHQ2M High Resolution VGA Cable (2-meter) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above. This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | MXTMMHQ2M |
| Our part no. | V931961 |
| EAN | 0065030847704 |
| Category | Cables & Adapters › Display Cables |
| Weight | 0.2 kg |
| Features | |
| Cable length | 2 m |
| Connector 1 | VGA (D-Sub) |
| Connector 2 | VGA (D-Sub) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Product colour | Black |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| Cable shielding | Aluminum mylar foil |
| AWG wire size | 28 |
| Connector contacts plating | Nickel |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Cable rating | CMG (CM) |
| Number of conductors | 14 |
| Impedance | 75 Ω |
| Plug and Play | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, REACH |
| Weight & dimensions | |
| Weight | 275 g |
| Packaging data | |
| Package width | 199 mm |
| Package depth | 155 mm |
| Package height | 47 mm |
| Package weight | 300 g |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 372 mm |
| Master (outer) case length | 422 mm |
| Master (outer) case height | 272 mm |
| Products per master (outer) case | 50 pc(s) |
