Description

StarTech.com 10/100 Mbps Single Mode Fiber Media Converter SC 30 km, 200 Mbit/s, 10Base-T, 100Base-FX, Fast Ethernet, 10,100 Mbit/s, Full, Half

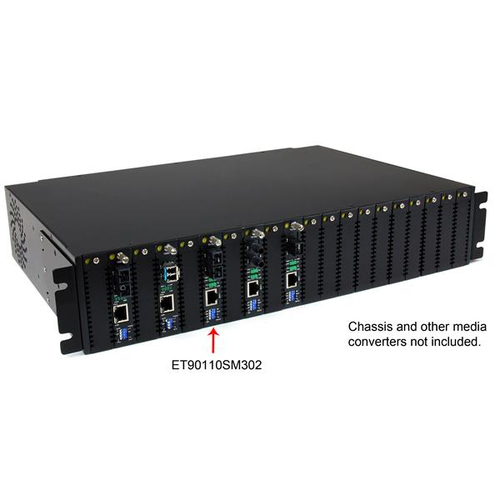

Convert and extend a 10/100 Mbps Ethernet connection up to 18.6 miles/30km over Single Mode SC fiber The ET90110SM302 10/100 Mbps Single Mode Fiber Media Converter SC (30 km) lets you extend a Fast Ethernet network (10/100) over single mode fiber, at distances up to 30 km (18.6 miles). A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet to fiber solution, with an all-steel chassis, and simple plug-and-play installation with minimal configuration required. For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U). Backed by a StarTech.com 2-year warranty and free lifetime technical support. The StarTech.com Advantage - Link loss forwarding, remote monitoring of status ensures maximum up-time - Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility - Rugged steel casing for durability in harsh environments

Specifications

BrandSTARTECH
Manufacturer part no.ET90110SM302
Our part no.V931980
EAN0065030846264
CategoryNetworking › Transceivers & SFPs
Weight0.7 kg
Network
Maximum data transfer rate200 Mbit/s
Converter input interface10Base-T
Converter output interface100Base-FX
Ethernet interface typeFast Ethernet
Ethernet LAN data rates10,100 Mbit/s
Auto MDI/MDI-XYes
Duplex systemFull, Half
Performance
Maximum transfer distance30000 m
Wavelength1310 nm
Fiber mode structureSingle-mode
Features
InternalNo
Plug and PlayYes
Product colourBlack
Ports & interfaces
Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
Fiber ports quantity1
Fiber optic connectorSC
DC-in jackYes
Power
Output voltage12 V
Output current1 A
External power adapterYes
Weight & dimensions
Weight600 g
Operational conditions
Operating temperature (T-T)0 - 60 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)10 - 90%
Packaging content
ManualYes
Packaging data
Package width206 mm
Package depth137 mm
Package height89 mm
Package weight766 g
Certificates
Compliance certificatesRoHS
CertificationCE, FCC
Logistics data
Harmonized System (HS) code85176990
Other features
Dimensions (WxDxH)95 x 160 x 20 mm
Full duplexYes
