Description
StarTech.com Fiber Media Converter Gigabit 1000Mbps MM Fibre LC 550m, 2000 Mbit/s, 1000Base-T, 1000Base-LX, 1000Base-SX, Gigabit Ethernet, 1000 Mbit/s, Full, Half
Convert and extend a Gigabit Ethernet connection up to 550 m / 1804 ft over Multimode LC fiber
The ET91000LC2 1000 Mbps Gigabit Multimode Fiber Media Converter (LC, 550m) lets you extend a Gigabit Ethernet network over multimode fiber, at distances up to 550m (1804 ft).
A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, this GbE to MM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet-to-fiber solution, the Ethernet to LC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

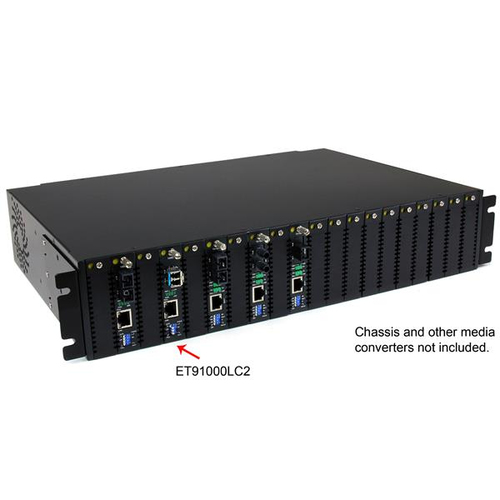

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U), as well as a replaceable SFP slot.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Link loss forwarding, remote status monitoring ensures maximum up-time - Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility - Rugged steel casing for durability in harsh environments
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | ET91000LC2 |
| Our part no. | V931982 |
| EAN | 0065030846226 |
| Category | Networking › Transceivers & SFPs |
| Weight | 0.7 kg |
| Network | |
| Maximum data transfer rate | 2000 Mbit/s |
| Converter input interface | 1000Base-T |
| Converter output interface | 1000Base-LX, 1000Base-SX |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full, Half |
| Performance | |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Fiber mode structure | Multi-mode |
| Mean time between failures (MTBF) | 65000 h |
| Features | |
| Internal | No |
| Plug and Play | Yes |
| Product colour | Black |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | LC |
| DC-in jack | Yes |
| Power | |
| Output voltage | 12 V |
| Output current | 1 A |
| Power consumption (typical) | 4 W |
| External power adapter | Yes |
| Weight & dimensions | |
| Weight | 620 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| Manual | Yes |
| Packaging data | |
| Package width | 206 mm |
| Package depth | 138 mm |
| Package height | 89 mm |
| Package weight | 774 g |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, FCC |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Dimensions (WxDxH) | 95 x 160 x 20 mm |
| Full duplex | Yes |
