Description

StarTech.com Gigabit Ethernet Multi Mode Fiber Media Converter SC 550m - 1000 Mbps, 2000 Mbit/s, Gigabit Ethernet, Full, Half, 550 m, 850 nm, Multi-mode

Convert and extend a Gigabit Ethernet connection up to 550 m / 1804 ft over Multi Mode SC fiber

The ET91000SC2 1000 Mbps Gigabit Multimode Fiber Media Converter (SC, 550m) lets you extend a Gigabit Ethernet network over multimode fiber, at distances up to 550m (1804 ft).

A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-SX) fiber backbone, the GbE to MM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, this Ethernet to SC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

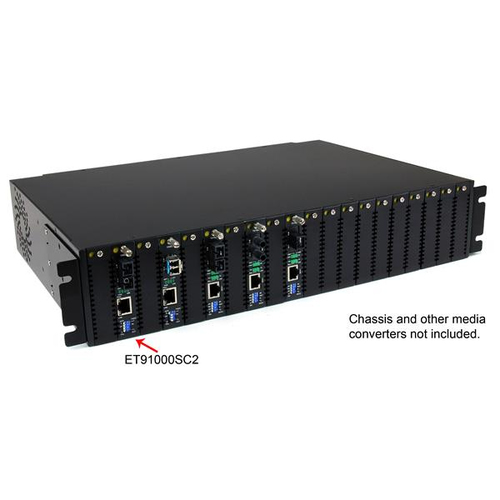

For added versatility, the fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Link loss forwarding, remote status monitoring help ensure maximum up-time - Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility - Rugged steel casing for durability in harsh environments

Specifications

BrandSTARTECH
Manufacturer part no.ET91000SC2
Our part no.V931983
EAN0065030846233
CategoryNetworking › Transceivers & SFPs
Weight0.7 kg
Network
Maximum data transfer rate2000 Mbit/s
Ethernet interface typeGigabit Ethernet
Auto MDI/MDI-XYes
Duplex systemFull, Half
Performance
Maximum transfer distance550 m
Wavelength850 nm
Wavelength-division multiplexing (WDM)No
Fiber mode structureMulti-mode
Mean time between failures (MTBF)65000 h
Features
InternalNo
Product colourBlack
Housing materialSteel
Ports & interfaces
Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
Fiber optic connectorSC
Power
Input voltage115 - 230 V
Input current0.36 A
Output voltage12 V
Output current1.6 A
Power consumption (typical)4 W
External power adapterYes
Power plug typeType M
Weight & dimensions
Width90 mm
Depth150 mm
Height25 mm
Weight562 g
Operational conditions
Operating temperature (T-T)0 - 60 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)10 - 90%
Packaging content
AC adapter includedYes
ManualYes
Packaging data
Package width205 mm
Package depth138 mm
Package height89 mm
Package weight766 g
Certificates
Compliance certificatesRoHS
CertificationCE, FCC
Logistics data
Harmonized System (HS) code85176990
