Description

StarTech.com Gigabit Ethernet Single Mode Fiber Media Converter SC 40 km - 1000 Mbps, 2000 Mbit/s, 1000Base-T, 1000Base-LX, 1000Base-SX, Gigabit Ethernet, 1000 Mbit/s, Full, Half

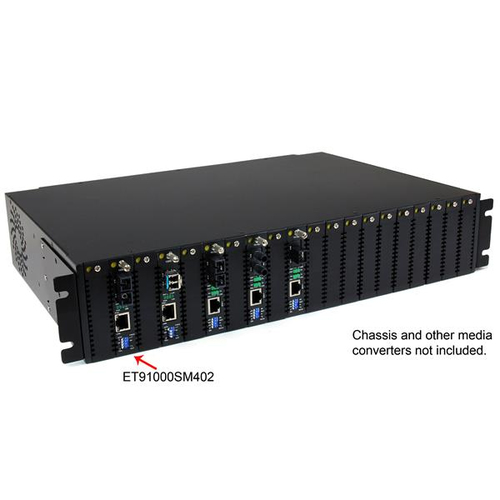

Convert and extend a Gigabit Ethernet connection up to 24.8 miles/40 km over Single Mode SC fiber The ET91000SM402 1000 Mbps Gigabit Single Mode Fiber Media Converter SC (40 km) lets you extend a Gigabit Ethernet network over single mode fiber by up to 40km (25 miles). A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the GbE to SM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to SC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required. For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U). Backed by a StarTech.com 2-year warranty and free lifetime technical support. The StarTech.com Advantage - Link loss forwarding, remote status monitoring help ensure maximum up-time - Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility - Rugged steel casing for added durability in harsh environments

Specifications

BrandSTARTECH
Manufacturer part no.ET91000SM402
Our part no.V931984
EAN0065030846219
CategoryNetworking › Transceivers & SFPs
Weight0.7 kg
Network
Maximum data transfer rate2000 Mbit/s
Converter input interface1000Base-T
Converter output interface1000Base-LX, 1000Base-SX
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates1000 Mbit/s
Auto MDI/MDI-XYes
Duplex systemFull, Half
Performance
Maximum transfer distance40000 m
Wavelength1310 nm
Fiber mode structureSingle-mode
Mean time between failures (MTBF)65000 h
Features
InternalNo
Plug and PlayYes
Product colourBlack
Ports & interfaces
Connectivity technologyWired

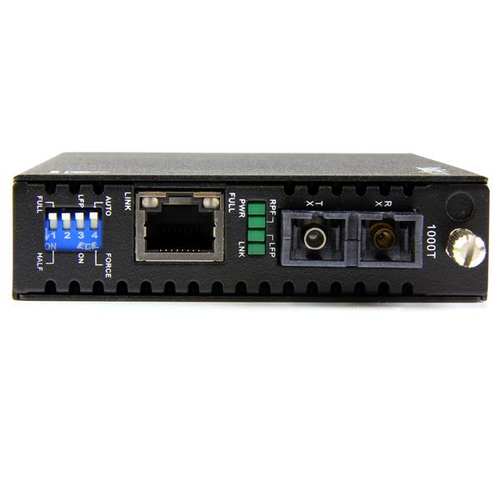

Ethernet LAN (RJ-45) ports1
Fiber ports quantity1
Fiber optic connectorSC

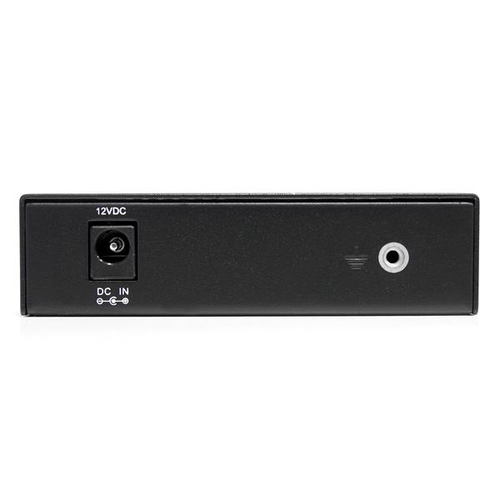

DC-in jackYes
Power
Output voltage12 V
Output current1 A
Power consumption (typical)4 W
External power adapterYes
Weight & dimensions
Weight600 g
Operational conditions
Operating temperature (T-T)0 - 60 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)10 - 90%
Packaging content
ManualYes
Packaging data
Package width140 mm
Package depth205 mm
Package height91 mm
Package weight700 g
Certificates
Compliance certificatesRoHS
CertificationCE, FCC
Logistics data
Harmonized System (HS) code85176990
Other features
Dimensions (WxDxH)95 x 160 x 20 mm
Full duplexYes
