Description
StarTech.com 6in Slimline SATA to SATA Adapter with Power - F/M, 0.1524 m, SATA III, Slimline SATA 13 pin, SATA 7+15 pin, Male/Female, Red
Connect a Slimline SATA optical drive up to 6in away from a standard SATA motherboard connection

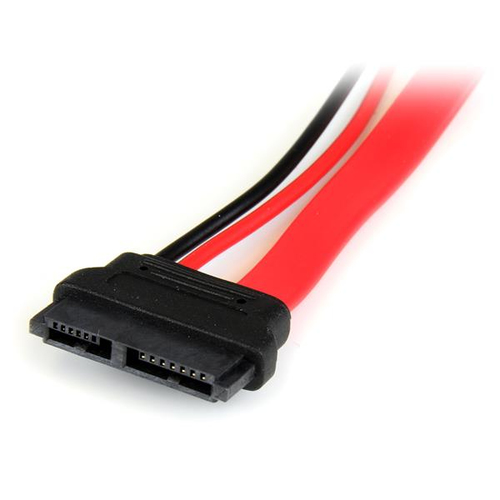

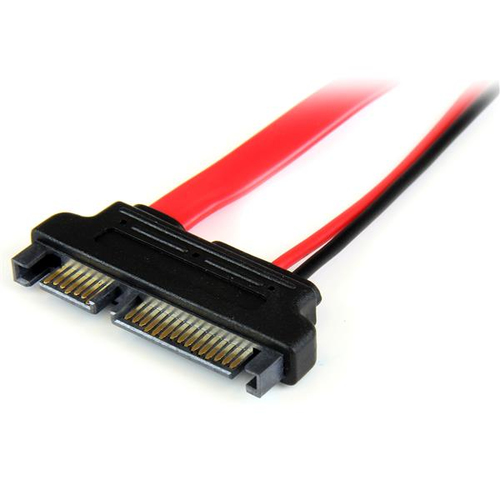

The SLSATAADAP6 Slimline SATA to SATA adapter features a Slimline Serial ATA connector on one end and a standard SATA data connector (with SATA power connector) on the other, enabling you to connect a Slimline SATA optical drive to standard motherboard and power supply connections. The slim SATA adapter offers 6-inches in cable length, which compared to standard (non-cable) SATA/Slimline SATA adapter reduces strain off the drive connector and allows for flexible cable routing when positioning the Slimline SATA drive within the system case. Designed and constructed to provide a dependable Slimline SATA to SATA connection, this high quality cable is backed by StarTech.com's Lifetime Warranty.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | SLSATAADAP6 |
| Our part no. | V932108 |
| EAN | 0065030848640 |
| Category | Cables & Adapters › Other (1260) |
| Weight | 0 kg |
| Features | |
| Cable length | 0.1524 m |
| Cable type | SATA III |
| Connector 1 | Slimline SATA 13 pin |
| Connector 2 | SATA 7+15 pin |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector gender | Male/Female |
| Product colour | Red |
| AWG wire size | 18 |
| Maximum data transfer rate | 6 Gbit/s |
| Weight | 14 g |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | RoHS |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 129 mm |
| Package depth | 141 mm |
| Package height | 19 mm |
| Package weight | 19 g |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 336 mm |
| Master (outer) case length | 492 mm |
| Master (outer) case height | 218 mm |
| Products per master (outer) case | 400 pc(s) |
