Description
StarTech.com 4-Post 12U Hinged Wall-Mount Network Rack, 19" Open Frame Server Rack with 19.8in Mounting Depth, Wall Mount Swing Out Data Rack for IT / AV / Patch Panel / Computer Equipment, Wall mounted rack, 12U, 63.4 kg, 18 kg, Black
Wall-mount your server or networking equipment with a hinged rack design for easy access and maintenance

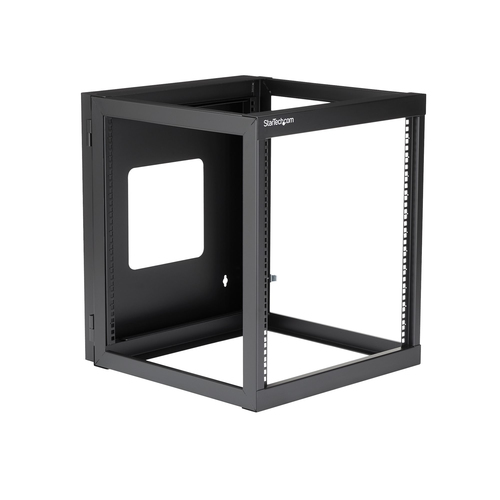

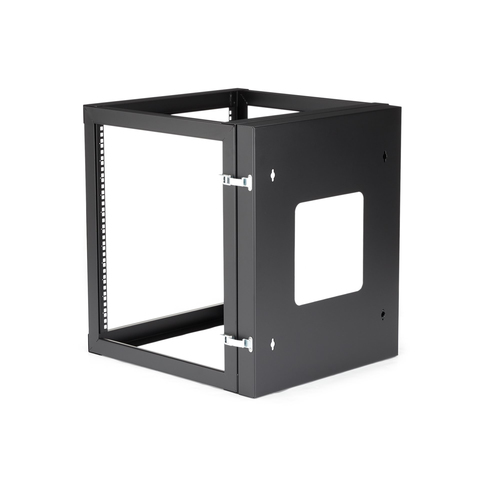

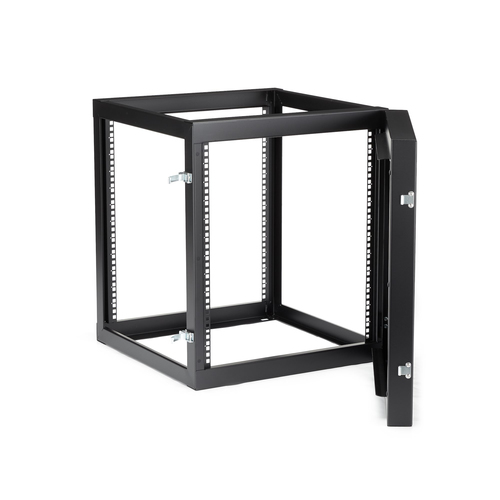

The RK1219WALLOH 12U Hinged Open Frame Wall Mount Server Rack lets you wall mount your (19-inch wide) servers, A/V or network equipment and features a hinged rack design that allows the entire frame to swing open for easy installation and maintenance of your equipment.
The 12U wallmount rack offers a 4 post design for additional support of your equipment, storing a maximum weight capacity of 63 kg (139 lbs) with a maximum mounting depth of 19.8inch (50.2cm) . Constructed of high-quality SPCC cold-rolled steel for strength and durability, the open frame wallmount server rack allows for maximum airflow, and ships complete with all of the rack screws and cage nuts required to mount your equipment, saving the expense of purchasing them separately.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | RK1219WALLOH |
| Our part no. | V932199 |
| EAN | 0065030848855 |
| Category | Docks, Bags & Racks › Racks & Cabinets |
| Weight | 20.4 kg |
| Features | |
| Rack capacity | 12U |
| Type | Wall mounted rack |
| Maximum weight capacity | 63.4 kg |
| Product colour | Black |
| Material | Steel |
| Frame type | Open |
| Product design | 4-post |
| Key lock | No |
| Front door key lock | No |
| Adjustable mounting rails | No |
| Number of fans | 0 fan(s) |
| Cable management | No |
| Mounting hole shape | Square |
| Castor wheels | No |
| Certification | RoHS, CE, UL, TAA |
| Weight & dimensions | |
| Width | 556 mm |
| Depth | 600 mm |
| Height | 647 mm |
| Inner depth | 50.5 cm |
| Weight | 18 kg |
| Mounting depth (max) | 50.7 cm |
| Packaging data | |
| Nuts included | Yes |
| Number of nuts | 48 |
| Screws included | Yes |
| Number of screws | 48 |
| Manual | Yes |
| Package width | 739 mm |
| Package depth | 682 mm |
| Package height | 768 mm |
| Package weight | 20.7 kg |
| Logistics data | |
| Harmonized System (HS) code | 85381000 |
| Master (outer) case width | 670 mm |
| Master (outer) case length | 720 mm |
| Master (outer) case height | 760 mm |
| Products per master (outer) case | 1 pc(s) |
| Other features | |
| Compliance industry standards | EIA-310-D, EIA RS310-D |
