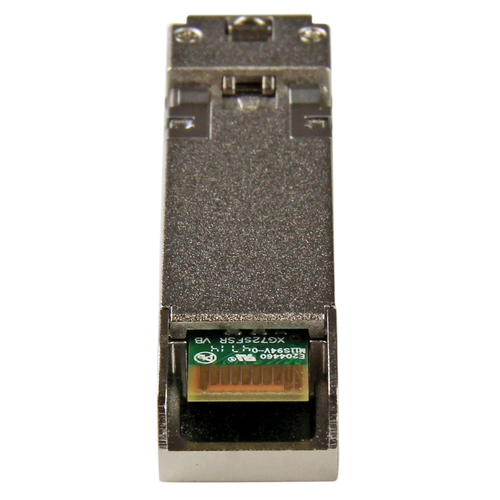

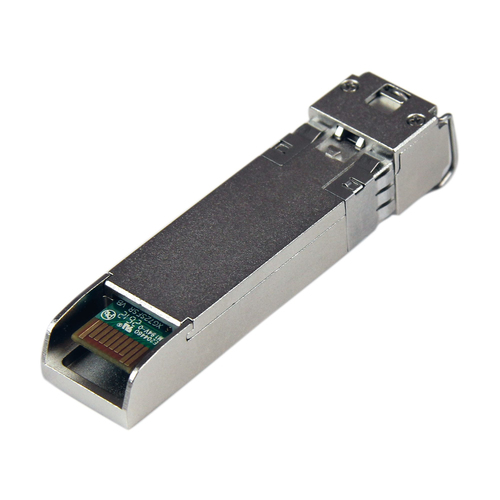

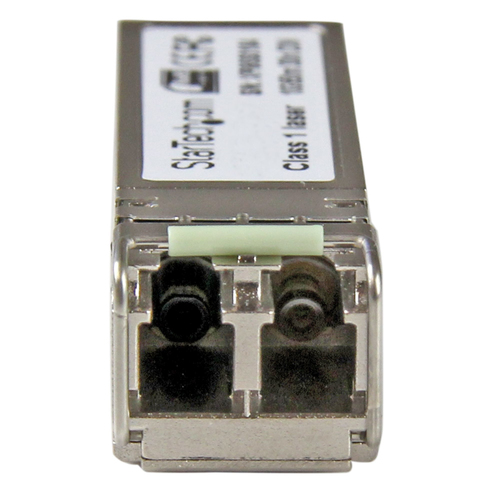

StarTech.com Cisco SFP-10G-SR Compatible SFP+ Module - 10GBASE-SR - 10GbE Multimode Fiber MMF Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 300m - 850nm - DDM Cisco Firepower, ASR9000, C9300, Fiber optic, 11100 Mbit/s, SFP+, LC, SR, 300 m

10 Gbps | Multi Mode Fiber | LC | 300 m (984 ft) | Lifetime Warranty

The SFP10GSRST is a Cisco SFP-10G-SR compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 10GbE connectivity over fiber cable, for 10GBASE-SR compliant networks, with a maximum distance of up to 300 m (984 ft.).

Technical Specifications:

• Wavelength: 850 nm • Maximum Data Transfer Rate: 10 Gbps • Type: Multimode Fiber • Connection Type: LC Connector • Maximum Transfer Distance: 300 m (984 ft.) • MTBF: 1,967,709 hours • Power Consumption: Less than 1.2 Watts • Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

Specifications

BrandSTARTECH
Manufacturer part no.SFP10GSRST
Our part no.V932281
EAN0065030850797
CategoryNetworking › Transceivers & SFPs
Weight0 kg
Performance
SFP transceiver typeFiber optic
Maximum data transfer rate11100 Mbit/s
Interface typeSFP+
Multi-mode fiber (MMF) supportedYes
Fiber optic connectorLC
SFP transceiver standardSR
Maximum transfer distance300 m
Wavelength850 nm
Networking standardsIEEE 802.3ae
Duplex systemFull, Half
Digital Diagnostics Monitoring (DDM)Yes
Wavelength-division multiplexing (WDM)No
Features
Product colourSilver
Hot-swapYes
Mean time between failures (MTBF)1967709 h
Brand compatibilityCisco
Power
Power consumption (typical)1.2 W
Certificates
Compliance certificatesRoHS
CertificationCE, FCC, UL, REACH
Operational conditions
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)30 - 70%
Weight & dimensions
Width12 mm
Depth60 mm
Height10 mm
Weight22 g
Packaging content
Quantity per pack1 pc(s)
Packaging data
Package width91 mm
Package depth113 mm
Package height33 mm
Package weight51 g
Logistics data
Master (outer) case width338 mm
Master (outer) case length428 mm
Harmonized System (HS) code85369010
Master (outer) case height354 mm
Products per master (outer) case108 pc(s)
