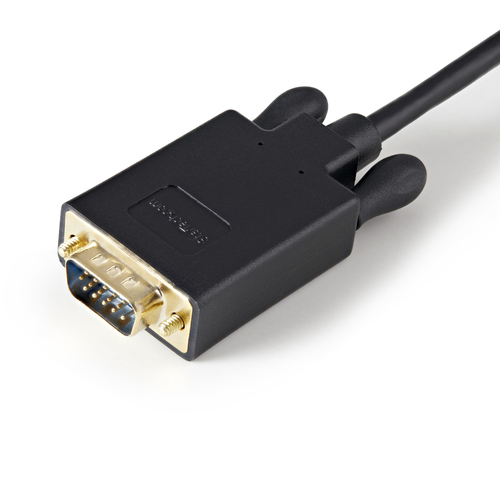

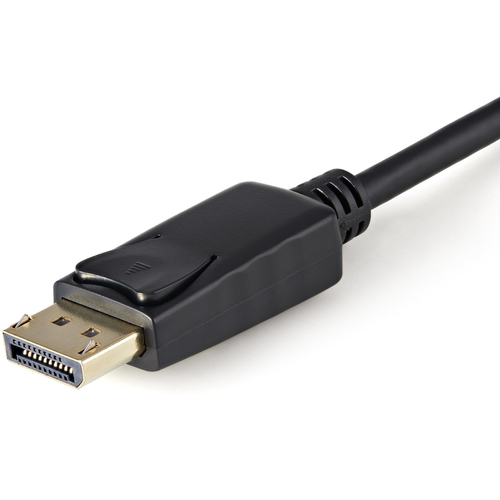

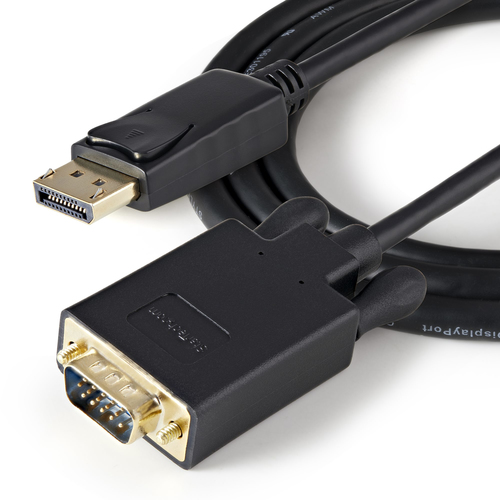

StarTech.com 3ft (91cm) DisplayPort to VGA Cable - Active DisplayPort to VGA Adapter Cable - 1080p Video - DP to VGA Monitor Cable - DP 1.2 to VGA Converter - Latching DP Connector, 0.91 m, DisplayPort, VGA (D-Sub), Male, Male, Straight
Connect a DisplayPort-equipped PC to a nearby VGA monitor/Projector, with a short 3 foot cable
The DP2VGAMM3B active DisplayPort to VGA converter cable lets you connect your DisplayPort-equipped desktop or laptop directly to a nearby VGA monitor or projector, saving the expense of additional adapters while eliminating the clutter of excess cable.
Plus, because the converter cable supports video resolutions up to 1920x1200 you can convert a DisplayPort video source to VGA without sacrificing video quality.
The DP2VGAMM3B is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | DP2VGAMM3B |
| Our part no. | V932852 |
| EAN | 0065030852456 |
| Category | Cables & Adapters › VGA & Video Adapters |
| Weight | 0 kg |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable length | 0.91 m |
| Connector 1 | DisplayPort |
| Connector 2 | VGA (D-Sub) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| DisplayPort version | 1.2 |
| Maximum resolution | 2048 x 1280 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1280 |
| Maximum refresh rate | 60 Hz |
| HBR2 support | Yes |
| Product colour | Black |
| Chipset | Analogix - 9832 |
| Plug and Play | Yes |
| Converter type | Active video converter |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 40 - 85% |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
| Weight | 79 g |
| Width | 40 mm |
| Depth | 915 mm |
| Height | 15 mm |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 15 mm |
| Package weight | 90 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 420 mm |
| Master (outer) case length | 440 mm |
| Master (outer) case height | 420 mm |
| Products per master (outer) case | 200 pc(s) |
