Description
StarTech.com 3 ft Panel Mount USB Cable B to B - F/M, 0.91 m, USB B, USB B, USB 2.0, 0.48 Gbit/s, Black
Panel-mount a USB-B port, for easy access

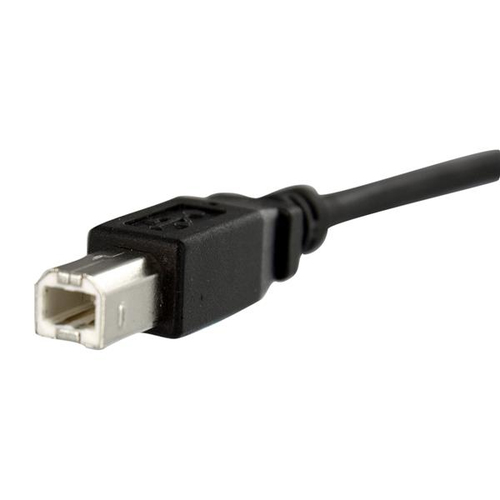

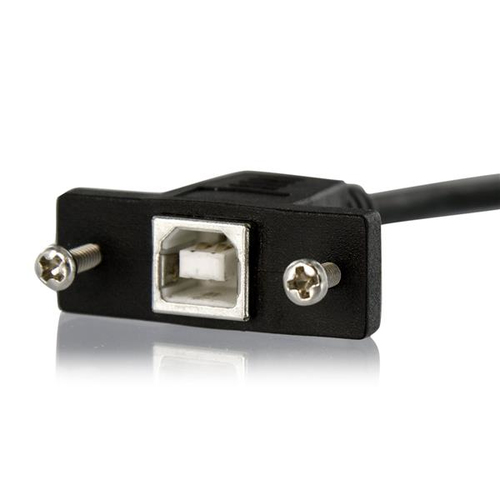

The USBPNLBFBM3 3ft Panel Mount USB Cable features one USB-B male connector on one end and a USB-B panel mount female port on the other, providing a convenient solution for custom enclosures (e.g. internally mounted hard drives).
Offering 3ft in cable length, the adapter allows you to extend the connection as needed within the system case.
The USBPNLBFBM3 is backed by StarTech.com’s lifetime warranty for guaranteed reliability.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | USBPNLBFBM3 |
| Our part no. | V932904 |
| EAN | 0065030852128 |
| Category | Cables & Adapters › USB Cables & Adapters |
| Weight | 0 kg |
| Features | |
| USB version | USB 2.0 |
| Connector 1 | USB B |
| Connector 2 | USB B |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 24/28 |
| Connector contacts plating | Nickel |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Cable shielding | Aluminum mylar foil |
| Maximum data transfer rate | 480 Mbit/s |
| Maximum data transfer rate | 0.48 Gbit/s |
| Plug and Play | Yes |
| Product colour | Black |
| Weight & dimensions | |
| Cable length | 0.91 m |
| Weight | 45 g |
| Packaging data | |
| Package width | 127 mm |
| Package depth | 146 mm |
| Package height | 16 mm |
| Package weight | 100 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, UL, REACH |
| Logistics data | |
| Products per master (outer) case | 250 pc(s) |
| Master (outer) case width | 350 mm |
| Master (outer) case length | 400 mm |
| Master (outer) case height | 308 mm |
| Harmonized System (HS) code | 84733080 |
