Description

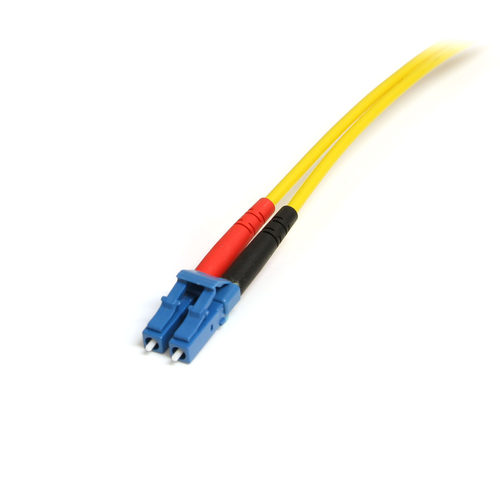

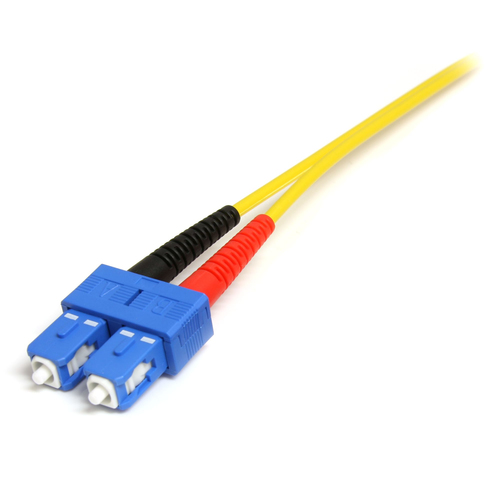

StarTech.com 7m Fiber Optic Cable - Single-Mode Duplex 9/125 LSZH Fiber Jumper Cord - LC/SC, 7 m, OS1, LC, SC

Connect fiber network devices for high-speed transfers with LSZH rated cable

The SMFIBLCSC7 7m LC to SC Single-Mode Duplex Fiber Cable features 9/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex single-mode applications.

This LC-SC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire – an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.

Each Duplex 9/125 (OS1) Single-Mode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.

Specifications

BrandSTARTECH
Manufacturer part no.SMFIBLCSC7
Our part no.V932971
EAN0065030853095
CategoryCables & Adapters › Specialist Cables
Weight0.1 kg
Features
Cable length7 m
Fibre optic typeOS1
Connector 1LC
Connector 2SC
Connector 1 genderMale
Connector 2 genderMale
Product colourYellow
Full duplexYes
Core diameter9 µm
Cladding diameter125 µm
Fiber mode structureSingle-mode
Data transfer rate100 Gbit/s
Jacket materialLow smoke zero halogen (LSZH)
Certificates
Compliance certificatesRoHS, CE
Operational conditions
Operating temperature (T-T)-20 - 60 °C
Storage temperature (T-T)-20 - 60 °C
Weight & dimensions
Weight99 g
Packaging data
Package width195 mm
Package depth207 mm
Package height34 mm
Package weight110 g
Packaging content
Quantity per pack1 pc(s)
Logistics data
Master (outer) case width415 mm
Harmonized System (HS) code85447000
Master (outer) case length436 mm
Master (outer) case height415 mm
Products per master (outer) case120 pc(s)
