Description

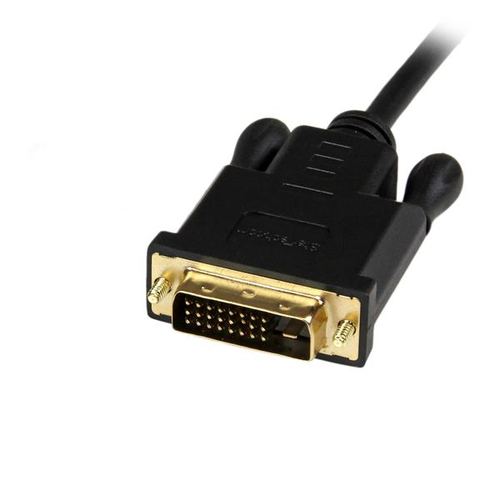

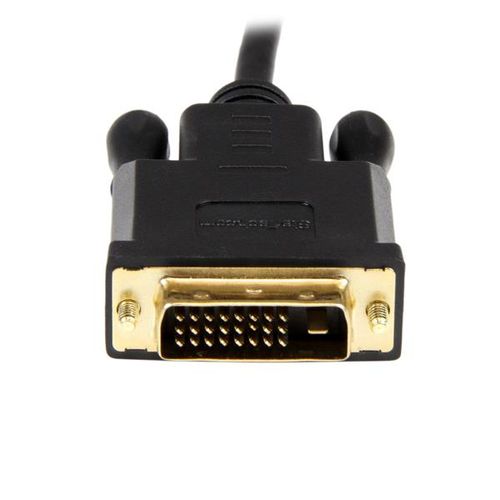

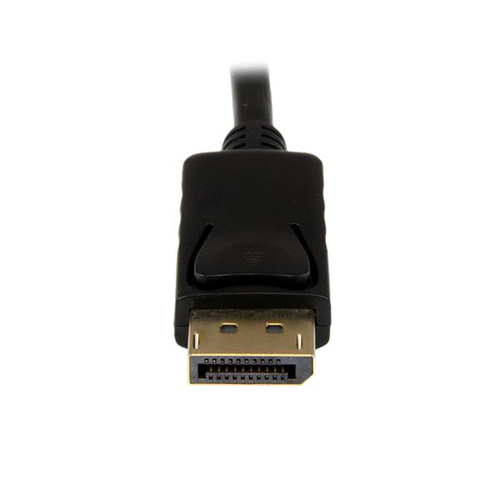

StarTech.com 3ft (1m) DisplayPort to DVI Cable - 1080p Video - Active DisplayPort to DVI Adapter Cable - DisplayPort to DVI-D Cable Converter Single Link - DP 1.2 to DVI Monitor Cable, 0.9 m, DisplayPort, DVI-D, Male, Male, Straight

Eliminate excess cable clutter with a short 3ft DisplayPort to DVI active adapter

The DP2DVIMM3BS 3ft active DisplayPort to DVI converter cable lets you connect your DisplayPort-equipped desktop or laptop directly to a nearby DVI monitor or projector, saving the expense of additional adapters while eliminating the clutter of excess cable.

For guaranteed compatibility with virtually any DisplayPort output the active DisplayPort to DVI adapter supports multimode (DP++) as well as single-mode DisplayPort signals. Unlike passive adapters, this ensures the DP2DVIMM3BS can be used with graphics cards that are not capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.

Plus, because the converter cable supports video resolutions up to 1920x1200 you can convert a DisplayPort video source to DVI without sacrificing video quality.

The DP2DVIMM3BS is backed by a 3-year StarTech.com warranty and free lifetime technical support.

Note:

This adapter is not compatible for use with the Apple Cinema Display.

The StarTech.com Advantage

Specifications

BrandSTARTECH
Manufacturer part no.DP2DVIMM3BS
Our part no.V932976
EAN0065030854900
CategoryCables & Adapters › VGA & Video Adapters
Weight0 kg
Features
Connector 1 form factorStraight
Connector 2 form factorStraight
Cable length0.9 m
Connector 1DisplayPort
Connector 2DVI-D
Connector 1 genderMale
Connector 2 genderMale
DisplayPort version1.2
Dual Link DVINo
Maximum resolution1920 x 1200 pixels
Supported graphics resolutions1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Product colourBlack
ChipsetParade - PS171
Plug and PlayYes
Converter typeActive video converter
Operational conditions
Operating temperature (T-T)0 - 60 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)40 - 85%
Certificates
Compliance certificatesRoHS
CertificationCE, FCC, REACH
Weight & dimensions
Weight74.9 g
Width40 mm
Depth915 mm
Height15 mm
Packaging data
Package width197 mm
Package depth222 mm
Package height15 mm
Package weight91.6 g
Packaging content
Quantity per pack1 pc(s)
Logistics data
Harmonized System (HS) code84733080
Master (outer) case width420 mm
Master (outer) case length415 mm
Master (outer) case height435 mm
Products per master (outer) case220 pc(s)
