Description

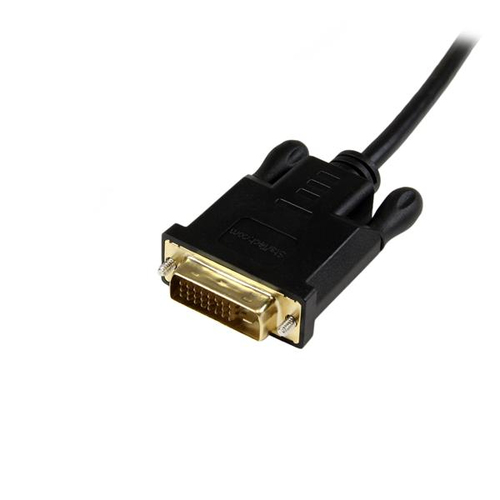

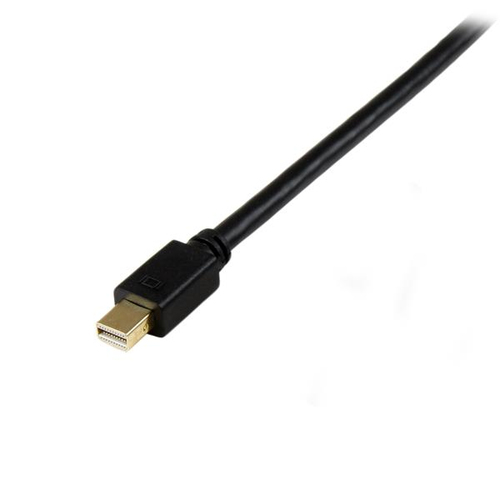

StarTech.com 3ft (0.9m) Mini DisplayPort to DVI Cable - Active Mini DP to DVI Adapter Cable - 1080p Video - mDP 1.2 to DVI-D Single Link - mDP or Thunderbolt 1/2 Mac/PC to DVI Monitor, 0.9 m, Mini DisplayPort, DVI-D, Male, Male, Straight

Eliminate excess cable clutter with a short 3ft Mini DisplayPort to DVI active adapter

The MDP2DVIMM3BS 3ft. active Mini DisplayPort to DVI adapter cable lets you directly connect your Mini DP video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) directly to a nearby DVI monitor or projector, saving the expense of additional adapters while eliminating the clutter of excess cable.

For guaranteed compatibility with virtually any Mini DisplayPort output the active Mini DP to DVI adapter supports dual-mode (DP++) as well as single-mode DisplayPort signals. Unlike passive adapters, this ensures the MDP2DVIMM3BS can be used with graphics cards that are not capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.

Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port, the adapter supports resolutions up to 1920 x 1200.

The MDP2DVIMM3BS is backed by a 3-year StarTech.com warranty and free lifetime technical support.

Note:

This adapter is not compatible for use with the Apple Cinema Display.

The StarTech.com Advantage

Specifications

BrandSTARTECH
Manufacturer part no.MDP2DVIMM3BS
Our part no.V933017
EAN0065030854924
CategoryCables & Adapters › VGA & Video Adapters
Weight0 kg
Features
Connector 1 form factorStraight
Connector 2 form factorStraight
Cable length0.9 m
Connector 1Mini DisplayPort
Connector 2DVI-D
Connector 1 genderMale
Connector 2 genderMale
DisplayPort version1.2
Dual Link DVINo
Maximum resolution1920 x 1200 pixels
Supported graphics resolutions1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Supported video modes1080p
Maximum refresh rate30 Hz
Product colourBlack
ChipsetParade - PS171
Plug and PlayYes
Converter typeActive
Operational conditions
Operating temperature (T-T)0 - 60 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)40 - 85%
Certificates
Compliance certificatesRoHS, CE
Weight & dimensions
Weight82 g
Width40 mm
Depth920 mm
Height15 mm
Packaging data
Package width200 mm
Package depth220 mm
Package height15 mm
Package weight82.2 g
Packaging content
Quantity per pack1 pc(s)
Logistics data
Harmonized System (HS) code84733080
Master (outer) case width420 mm
Master (outer) case length415 mm
Master (outer) case height435 mm
Products per master (outer) case180 pc(s)
