Description

StarTech.com 10m Fiber Optic Cable - Single-Mode Duplex 9/125 LSZH Fiber Jumper Cord - LC/SC, 10 m, OS1, LC, SC

Connect fiber network devices for high-speed transfers with LSZH rated cable

The SMFIBLCSC10 10m LC to SC Single-Mode Duplex Fiber Cable features 9/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex single-mode applications.

This LC-SC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire – an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.

Each Duplex 9/125 (OS1) Single-Mode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.

Specifications

BrandSTARTECH
Manufacturer part no.SMFIBLCSC10
Our part no.V933099
EAN0065030853071
CategoryCables & Adapters › Specialist Cables
Weight0.1 kg
Features
Cable length10 m
Fibre optic typeOS1

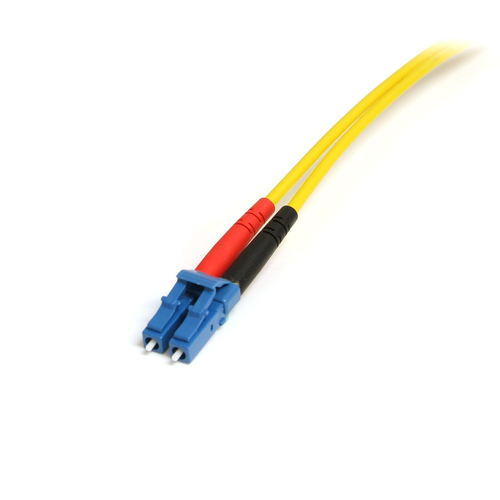

Connector 1LC

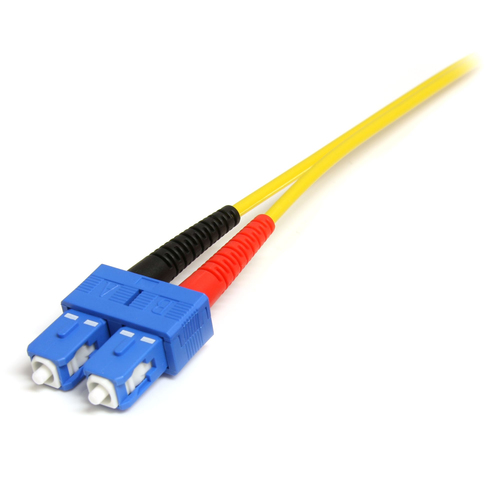

Connector 2SC
Connector 1 genderMale
Connector 2 genderMale
Product colourYellow
Full duplexYes
Core diameter9 µm
Cladding diameter125 µm
Fiber mode structureSingle-mode
Data transfer rate100 Gbit/s
Jacket materialLow smoke zero halogen (LSZH)
Certificates
Compliance certificatesRoHS, CE
Operational conditions
Operating temperature (T-T)-20 - 60 °C
Storage temperature (T-T)-20 - 60 °C
Weight & dimensions
Weight134 g
Packaging data
Package width199 mm
Package depth167 mm
Package height37 mm
Package weight143 g
Packaging content
Quantity per pack1 pc(s)
Logistics data
Master (outer) case width404 mm
Harmonized System (HS) code85447000
Master (outer) case length404 mm
Master (outer) case height432 mm
Products per master (outer) case80 pc(s)
