Description

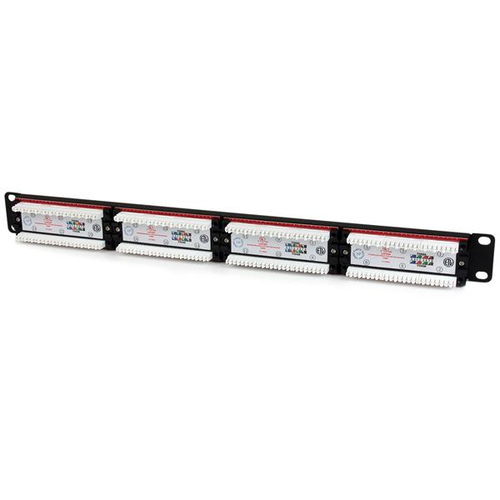

StarTech.com 24 Port 1U Rackmount Cat 6 110 Patch Panel, RJ-45, Rack mounting, 1U, Black, RoHS, CE, ETl, UL
Organize up to 24 Cat6 patch cables

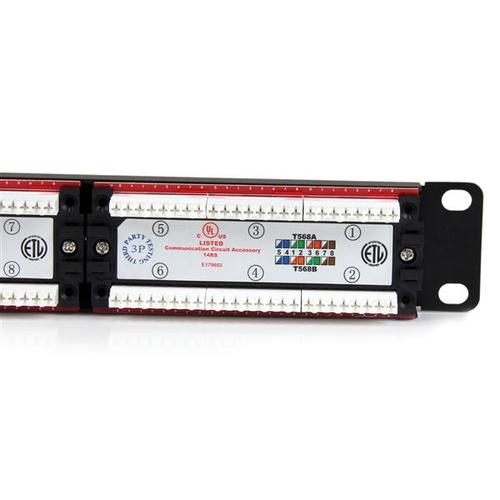

The C6PANEL24 24-port 110-type Rack Mount Cat 6 Patch Panel is color coded for both T568A and T568B wiring providing the perfect solution for any voice or LAN application.

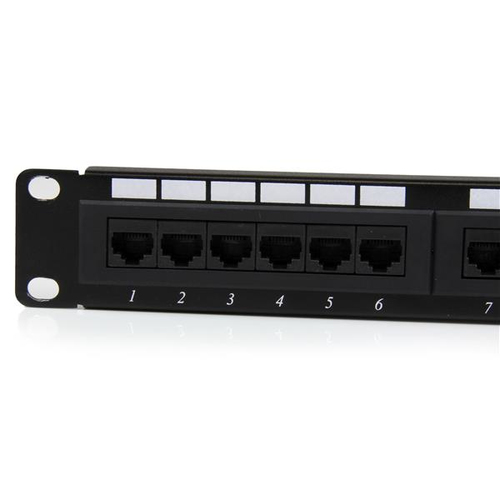

For hassle-free connections, the patch panel offers straight Cat 6 ports with 110-type termination, making it easy to insert and remove your cables. The 24-port patch panel also offers a quick and easy way to identify your cable runs, with port numbers clearly marked on the back of each RJ45 port, and a writeable/erasable marking surface for each port on the front of the panel for efficient system management.
Durably constructed of only top quality materials, this 24-port Network Patch Panel is backed by StarTech.com’s 2-year warranty.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | C6PANEL24 |
| Our part no. | V933193 |
| EAN | 0065030857475 |
| Category | Cables & Adapters › Cable Management |
| Weight | 0.6 kg |
| Network | |
| Ports quantity | 24 |
| Connector(s) | RJ-45 |
| Design | |
| Product colour | Black |
| Mounting | Rack mounting |
| Rack capacity | 1U |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, ETl, UL |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 10 - 65% |
| Weight & dimensions | |
| Width | 483 mm |
| Height | 34 mm |
| Depth | 44 mm |
| Weight | 581 g |
| Packaging data | |
| Package width | 491 mm |
| Package depth | 59 mm |
| Package height | 47 mm |
| Package weight | 678 g |
| Logistics data | |
| Harmonized System (HS) code | 85371098 |
| Master (outer) case width | 516 mm |
| Master (outer) case length | 255 mm |
| Master (outer) case height | 268 mm |
| Products per master (outer) case | 20 pc(s) |
