Description

StarTech.com Dual-Monitor USB 3.0 Docking Station with DVI and Vertical Stand, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-B, 3.5 mm, 10,100,1000 Mbit/s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, Black, Silver

Laptop Docking Station | Mac & Windows® | DVI to VGA & HDMI® Adapters | 2x Charge Ports

This dual-monitor USB 3.0 docking station turns your laptop into a dual-monitor workstation with flexible setup options.

Display Flexibility

The dual-DVI docking station adds dual-monitor support to your workstation, with resolution support up to 2048x1152. With more screen space, you can simultaneously access multiple applications and reference material on one display while composing on the other. To ensure the USB 3.0 dock supports a variety of displays, two display adapters (DVI to VGA and DVI to HDMI) are included.

Powerful Connections and Fast Device Charging

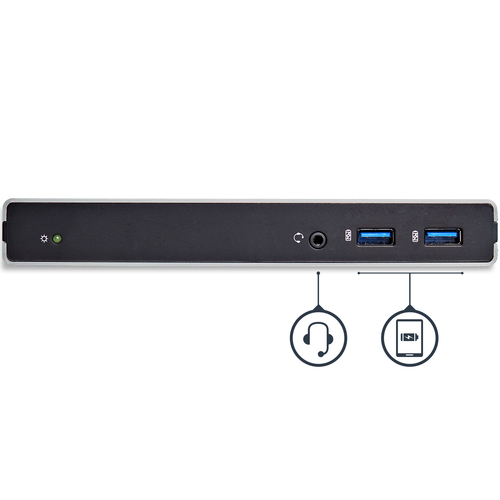

Transform your laptop into a workstation that supports all of your peripherals. This docking station features five USB 3.0 (USB 3.1 Gen 1) ports. The two front-facing USB ports are USB fast-charge ports (USB Battery Charging Specification 1.2). These accessible ports charge your mobile devices faster than standard USB ports, with or without your laptop connected to the dock. The dock also has a GbE port, headset jack and separate 3.5 mm audio and mic ports, so you’ll have all the connections you need.

Save Desktop Space

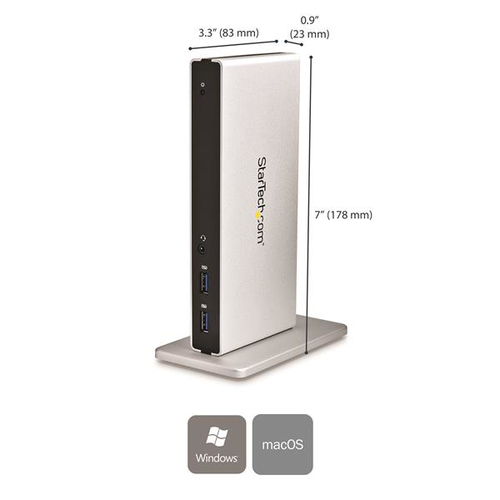

You can free up valuable desk space by positioning the dock vertically on your work surface using the included (optional) stand.

The USB3SDOCKDD is backed by a 3-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

BrandSTARTECH
Manufacturer part no.USB3SDOCKDD
Our part no.V933207
EAN0065030858267
CategoryDocks, Bags & Racks › Docking Stations
Weight0.9 kg

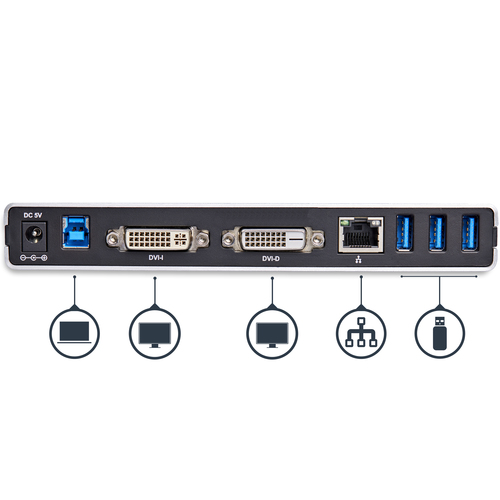

Ports & interfaces
Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity5
DVI-I ports quantity1
DVI-D ports quantity1
Combo headphone/mic portYes
Headphone outputs1
Headphone connectivity3.5 mm
DC-in jackYes
Network
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Wake-on-LAN readyYes
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-XYes
Full duplexYes
Performance
Card reader integratedNo
Data transfer rate5 Gbit/s
Maximum analog resolution2048 x 1152 pixels
Product colourBlack, Silver
LED indicatorsPower
Charging functionYes
UASP supportYes
Rubber feetYes
Housing materialAluminium, Plastic
Brand compatibilityAny brand
CertificationCE, FCC, REACH
Power
Power source typeAC
AC input voltage100 - 240 V
Input current0.8 A
Output voltage5 V
Output current4 A
Power consumption (typical)20 W
Power plug typeType M
Compatible power plug typesAU, EU, UK, US
Software
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac compatibilityYes
Mac operating systems supportedMac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Other operating systems supportedChromeOS
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)5 - 85%
Weight & dimensions
Width23 mm
Depth83 mm
Height178 mm
Weight285 g
Packaging data
Package width255 mm
Package depth186 mm
Package height95 mm
Package weight1.02 kg
Packaging content
Cables includedUSB
AC adapter includedYes
ManualYes
Drivers includedYes
Interface adapters includedDVI-I male - HDMI female, DVI-I male - VGA female
Stand includedYes
Technical details
Compliance certificatesRoHS
Logistics data
Products per master (outer) case10 pc(s)
Master (outer) case width357 mm
Master (outer) case length415 mm
Master (outer) case height251 mm
Harmonized System (HS) code84733020
Other features
Cable length1 m
ChipsetDisplayLink - DL-3900, Genesys Logic - GL3520
USB data transfer rates12,480,5000 Mbit/s
